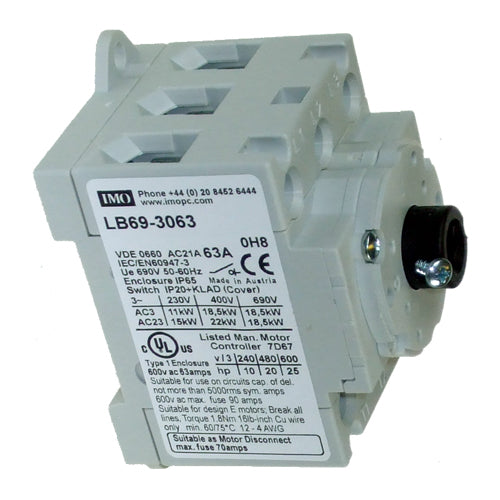

IMO LB69-3063, Base Mount Door Interlock 69 Series AC Disconnect, IP66, 3 Pole, 63A, Enclosed/Interlocked Handle
Regular price
$127.47
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Base Mount Door Interlock, Isolator Body, 3 Pole, 63A, For Use With E69 Shafts And H69 Handles.
| Number of Poles |
3 Pole |
| Rating @ 400V |
63 Amps AC21 (22kW AC23B) |
| Handle Type |
Enclosed / Interlocked Handle |
| Rated Voltage |
600V |
| Nema Rating | 4X |
| Cable Sizes (AWG) |
16-3AWG |
| Cable Size (mm²) |
1-25mm² |
| Lockable | Y |
| Mounting | Base Mount |
| IP Rating | IP66 |
| Temperature Range | -40 to +90°C |
| Certifications | CE, UL, cULus |
