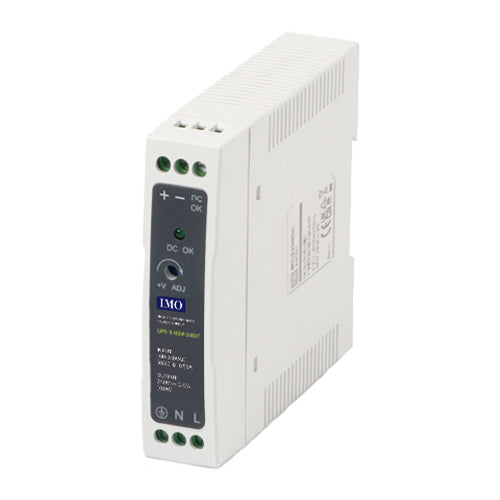

IMO LPS-1-010-24DC, LPS Series Single Phase DIN Rail Power Supply, 85-264VAC / 120-370VDC Universal Input, 10W 24VDC 0.42A Output, Plastic Body
Regular price
$89.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Input Voltage |
85-264VAC / 120-370VDC |
| Output Wattage |
10W |
| Output Voltage |
24VDC |
| Output Current |
0.42A |
| Efficiency |
84% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Plastic |
| Dimensions | 92 x 23 x 100mm |
| Cooling | Free air convection |
| Relative Humidity |
20 to 95% RH |
| Ambient Temperature |
-30°C to +70°C (refer to derating curve) |
| Derating | (50°C to 70°C) 2.5%/°C |
| Storage Temperature |
-40°C to +85°C |
| Certifications | CE, cULus |
| Warranty | 3-Year |
