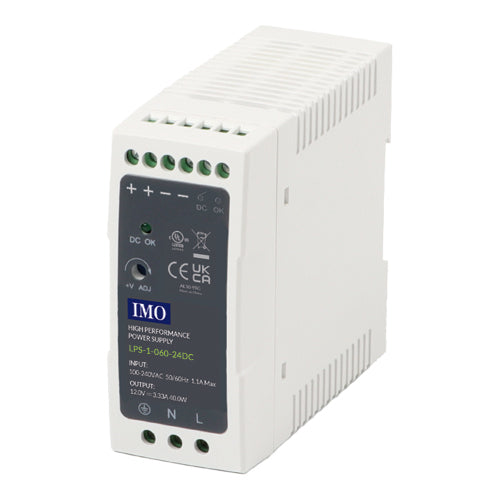

IMO LPS-1-060-24DC, LPS Series Single Phase DIN Rail Power Supply, 85-264VAC / 120-370VDC Universal Input, 60W 24VDC 2.5A Output, Plastic Body
Regular price
$149.29
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Input Voltage |
85-264VAC / 120-370VDC |
| Output Wattage |
60W |
| Output Voltage |
24VDC |
| Output Current |
2.5A |
| Efficiency |
88% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Plastic |
| Dimensions | 92 x 41 x 100mm |
| Cooling | Free air convection |
| Relative Humidity |
20 to 95% RH |
| Ambient Temperature |
-30°C to +70°C (refer to derating curve) |
| Derating | (50°C to 70°C) 2.5%/°C |
| Storage Temperature |
-40°C to +85°C |
| Certifications | CE, cULus |
| Warranty | 3-Year |
