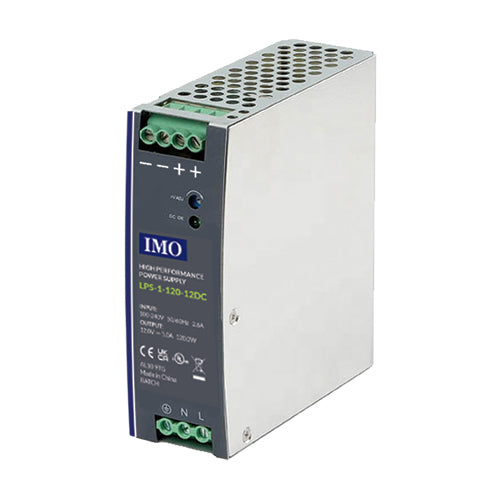

IMO LPS-1-120-12DC, LPS Series Single Phase DIN Rail Power Supply, 90-264VAC / 127-375VDC Universal Input, 120W 12VDC 10A Output, Metal Body
Regular price
$243.45
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Input Voltage |
90-264VAC / 127-375VDC |
| Output Wattage |
120W |
| Output Voltage / Power Dissipation |
12VDC / 24W |
| Output Current |
10A |
| Efficiency |
85.5% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Metal |
| Dimensions | L125 x W40 x D113 mm |
| Cooling | Free air convection |
| Relative Humidity |
10 to 95% RH |
| Ambient Temperature |
-20 to +70°C / -4 to +158°F |
| Derating | (61 to 71°C) 2 .5%°C / (141 .8 to 159°F) 1.8%°F |
| Storage Temperature |
-40 to +85°C / -40 to 185°F |
| Certifications | CE, cULus |
| Warranty | 3-Year |
