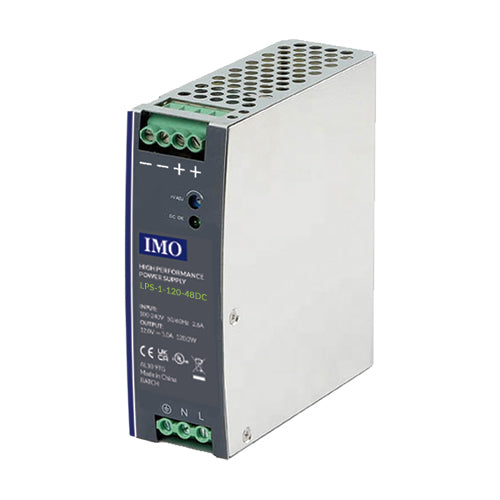

IMO LPS-1-120-48DC, LPS Series Single Phase DIN Rail Power Supply, 90-264VAC / 127-375VDC Universal Input, 120W 48VDC 2.5A Output, Metal Body
Regular price
$238.54
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Input Voltage |
90-264VAC / 127-375VDC |
| Output Wattage |
120W |
| Output Voltage / Power Dissipation |
48VDC / 19W |
| Output Current |
2.5A |
| Efficiency |
89% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Metal |
| Dimensions | L125 x W40 x D113 mm |
| Cooling | Free air convection |
| Relative Humidity |
10 to 95% RH |
| Ambient Temperature |
-20 to +70°C / -4 to +158°F |
| Derating | (61 to 71°C) 2 .5%°C / (141 .8 to 159°F) 1.8%°F |
| Storage Temperature |
-40 to +85°C / -40 to 185°F |
| Certifications | CE, cULus |
| Warranty | 3-Year |
