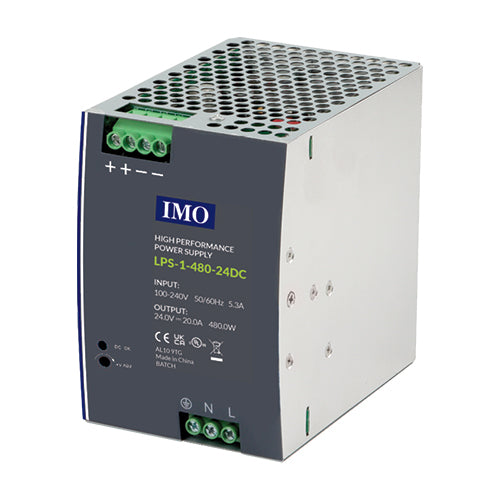

IMO LPS-1-480-24DC, LPS Series Single Phase DIN Rail Power Supply, 90-264VAC / 120-375VDC Universal Input, 480W 24VDC 20A Output, Metal Body
Regular price
$641.34
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Input Voltage |
90-264VAC / 127-375VDC |
| Output Wattage |
480W |
| Output Voltage / Power Dissipation |
24VDC / 63W |
| Output Current |
20A |
| Efficiency |
92% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Metal |
| Dimensions | L125 x W85 .5 x D129 mm |
| Cooling | Free air convection |
| Relative Humidity |
10 to 95% RH |
| Ambient Temperature |
-20 to +70°C / -4 to +158°F |
| Derating | (55 to 70°C) 2 .5%°C / (122 to 158°F) 3.6%°F |
| Storage Temperature |
-40 to +85°C / -40 to 185°F |
| Certifications | CE, cULus |
| Warranty | 3-Year |
