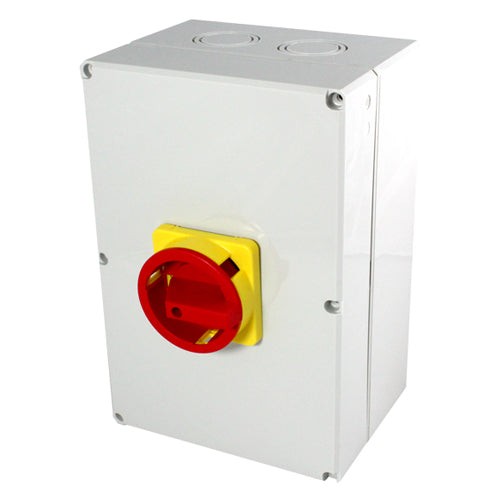

IMO PE69-6032, IP66 Enclosed Door Interlock AC Disconnect, 6 Pole, 32A, Enclosed/Interlocked Handle
Regular price
$211.77
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Number of Poles |
6 Pole |
| Rating @ 400V |
32 Amps AC21 (12.5kW AC23B) |
| Handle Type |
Enclosed / Interlocked Handle |
| Rated Voltage |
600V |
| Nema Rating | 4X |
| Cable Sizes (AWG) |
20-8AWG |
| Cable Size (mm²) |
0.5-10mm² |
| Lockable | Y |
| Mounting | Enclosed Door |
| IP Rating | IP66 |
| Temperature Range | -40 to +40°C |
| Certifications | CE, UL, cULus |
