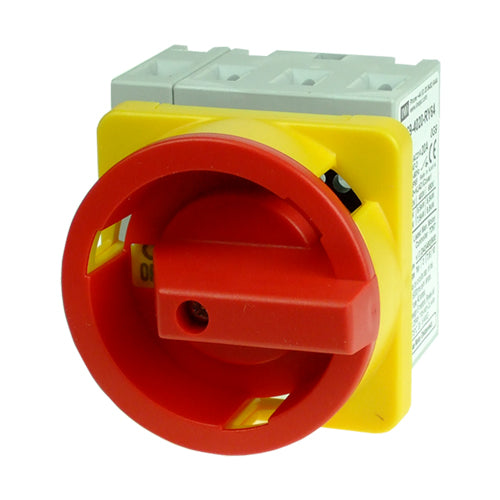

IMO PM69-4020-RY64, Front Panel Mount AC Disconnect, IP66, 4 Pole, 20A, Direct Red/Yellow 64mm Handle
Regular price
$99.74
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Panel Mount Isolator, 4 Pole, 20A, Supplied with 64x64mm, Red and Yellow Handle
| Number of Poles |
4 Pole |
| Rating @ 400V |
20 Amps AC21 (7.5kW AC23B) |
| Handle Type |
Direct Red/Yellow 64mm Handle |
| Rated Voltage |
600V |
| Nema Rating | 4X |
| Cable Sizes (AWG) |
20-8AWG |
| Cable Size (mm²) |
0.5-10mm² |
| Lockable | Y |
| Mounting | Front Panel Mount |
| IP Rating | IP66 |
| Temperature Range | -40 to +90°C |
| Certifications | CE, UL, cULus |
