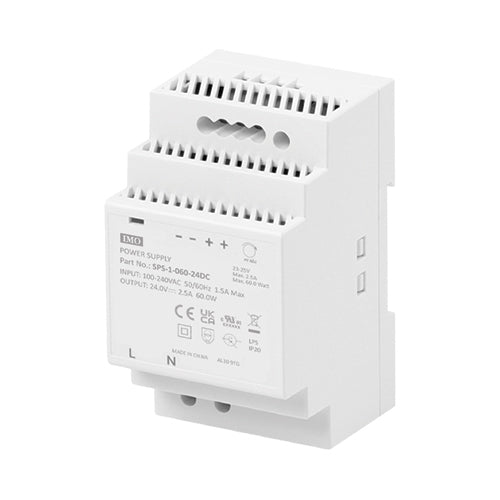

IMO SPS-1-060-24DC, SPS Series Single Phase DIN Rail Power Supply, 85-264VAC / 120-370VDC Universal Input, 60W 24VDC 2.5A Output, Plastic Body
Regular price
$111.33
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Frame Size |
3 |
| Input Voltage |
85-264VAC or 120-370VDC |
| Output Wattage |
60W |
| Output Voltage |
24VDC |
| Output Current |
2.5A |
| Efficiency |
90% |
| Isolation Voltage |
3000VAC/4242VDC |
| Isolation Resistance |
100MΩ @ 500VDC |
| Protection Rated | IP20 |
| Case Material | Plastic |
| Dimensions | 90 x 52 x 58mm |
| Cooling | Free air convection |
| Relative Humidity |
20 to 90% RH |
| Ambient Temperature |
-20°C to +70°C |
| Derating | (50 to 70°C ) 2.5%/°C |
| Storage Temperature |
-40°C to +85°C |
| Certifications | CE, cURus |
| Warranty | 3-Year |
