Home » IMO SPS-1-150-24DC, SPS Series Single Phase DIN Rail Power Supply, 85-264VAC / 120-370VDC Universal Input, 150W (230VAC)/ 127.4W (115VAC), 24VDC, 6.25A (230VAC)/ 5.3A (115VAC) Output, Plastic Body
IMO

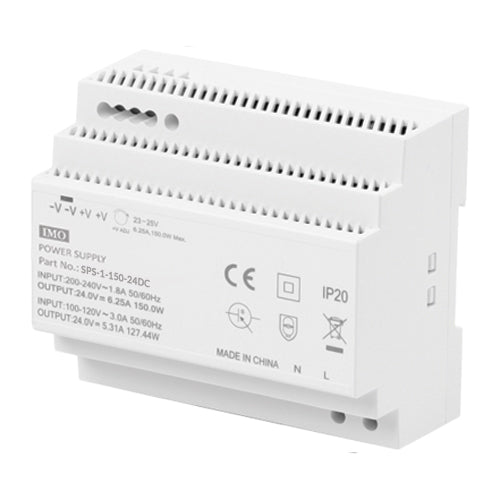

IMO SPS-1-150-24DC, SPS Series Single Phase DIN Rail Power Supply, 85-264VAC / 120-370VDC Universal Input, 150W (230VAC)/ 127.4W (115VAC), 24VDC, 6.25A (230VAC)/ 5.3A (115VAC) Output, Plastic Body

In stock
SKU: SPS-1-150-24DC
$151.89
Output current, power
Rated voltage
Phase
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Frame Size
 5
Input Voltage
 85-264VAC or 120-370VDC
Output Wattage
 150W (230VAC)/ 127.4W (115VAC)
Output Voltage
 24VDC
Output Current
 6.25A (230VAC)/ 5.3A (115VAC)
Efficiency
 90.5%
Isolation Voltage
 3000VAC/4242VDC
Isolation Resistance
 100MΩ @ 500VDC
Protection Rated IP20
Case Material Plastic
Dimensions 90 x 105 x 58 .4mm
Cooling Free air convection
Relative Humidity
 20 to 90% RH
Ambient Temperature
 -20°C to +70°C
Derating (50 to 70°C ) 2.5%/°C
Storage Temperature
 -40°C to +85°C
Certifications CE, cURus
Warranty 3-Year
