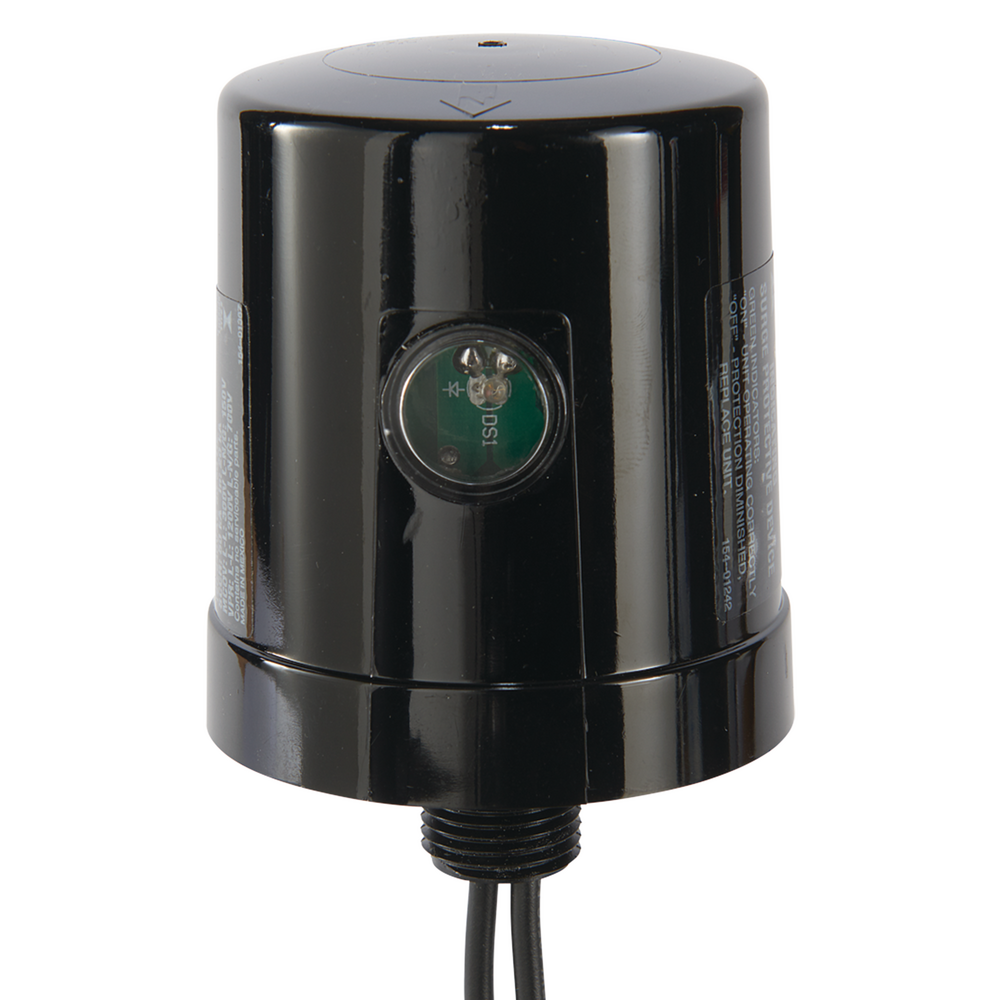

Intermatic AG2401C3, Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors.
- Three modes of protection.
- TPMOV® surge protection technology.
- Green LED protection indicator.
- Type 4X watertight, plastic enclosure for outdoor installations.
- UV-resistant polycarbonate housing.
- 1⁄2" threaded nipple for 7⁄8" nominal conduit knockout.
- 1-year product warranty.
-
UL certified to ANSI/UL 1449 5th edition.
| Model Number | AG2401C3 |
| Description | Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor |
| Color | Black |
| Material | Plastic |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
| Modes of Protection | 3 (L1-N, L2-N, L1-L2) |
| Short Circuit Current Rating | 50 kA |
| Nominal Discharge Current | 20 kA |
| Maximum Surge Current Rating Per Phase | 50 kA |
| Surge Protection Technology | TPMOV® |
| Maximum Continuous Operating Voltage (L-G) | 150 |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| Maximum Continuous Operating Voltage (L-N) | 150 |
| Maximum Continuous Operating Voltage (L1-L2) | 300 |
| Voltage Protection Rating (L-G) | 700 |
| Voltage Protection Rating (L-L) | 1200 |
| Voltage Protection Rating (L-N) | 700 |
