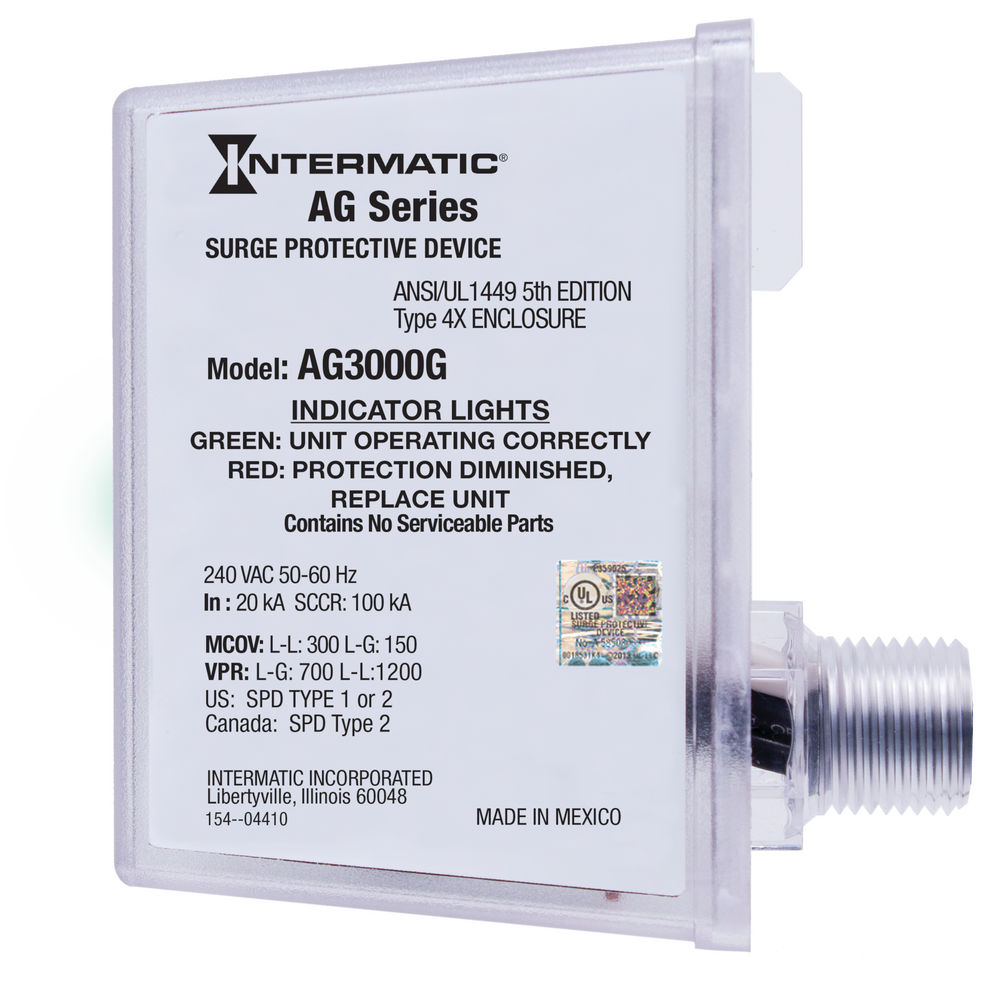

Intermatic AG3000G, Surge Protective Device, 240 VAC 1Ph w/Green Ground Lead, Type 1 or Type 2, Outdoor
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000G Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator will be on when the SPD is operating correctly. A red LED indicator will be on when protection is diminished, and the SPD needs to be replaced. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes commonly associated with standard MOV technology.
- Modes of protection: L-G, L1-L2.
- TPMOV® surge protection technology.
- LED Indicators. Green: unit operating correctly Red: protection diminished, replace unit.
- Green grounding lead.
- Type 4X watertight and UV resistant plastic enclosure.
- 3-year product warranty.
- $7,500 connected equipment warranty for 3 years.
-
UL certified to ANSI/UL 1449 5th edition.
| Model Number | AG3000G |
| Description | Surge Protective Device, 240 VAC 1Ph w/Green Ground Lead, Type 1 or Type 2, Outdoor |
| Warranty Period | 3-Year limited |
| Connected Equipment Warranty Period | 3-Year |
| RoHS Certification | N/A |
| Modes of Protection | L-G, L1-L2 |
| Short Circuit Current Rating | 100 kA |
| Nominal Discharge Current | 20 kA |
| Maximum Surge Current Rating Per Phase | 50 kA |
| Surge Protection Technology | TPMOV® |
| Maximum Continuous Operating Voltage (L-G) | 150 |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| Voltage Protection Rating (L-L) | 1200 |
| Voltage Protection Rating (L1-N/G) | 700 |
| Phase | Single |
