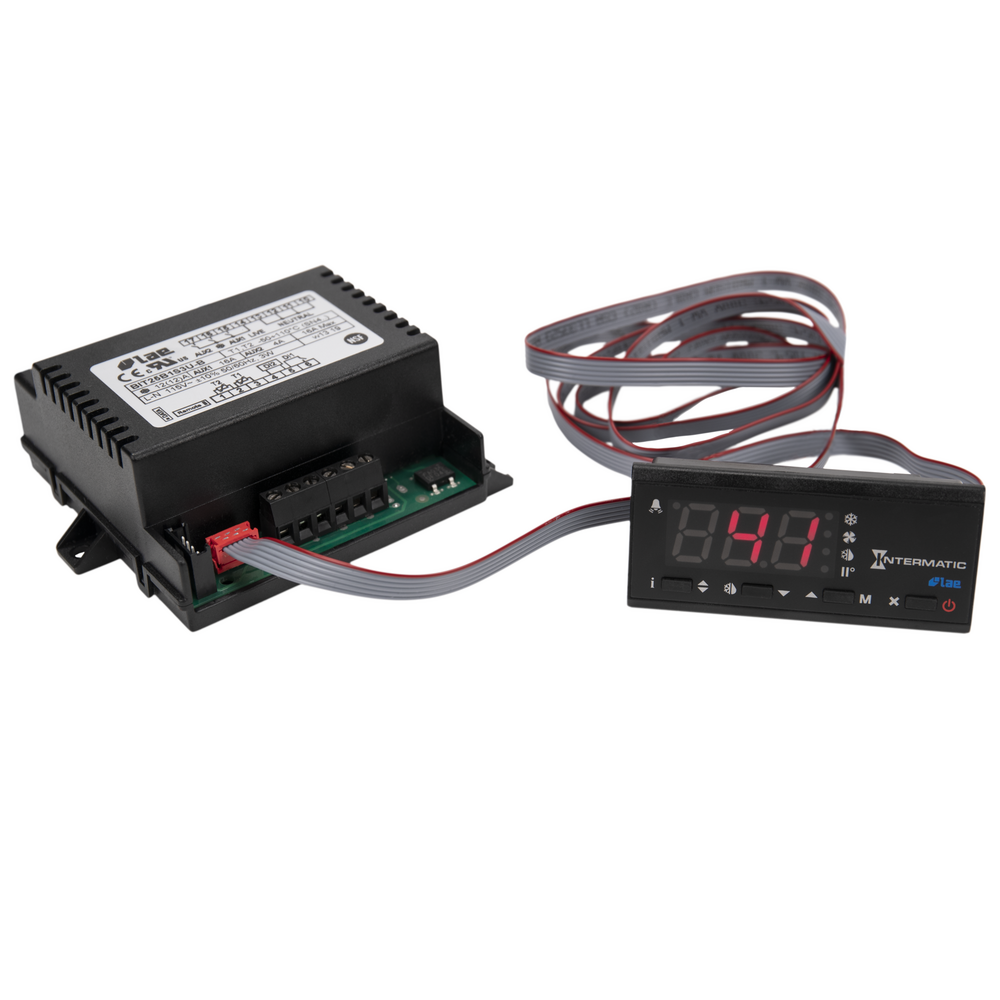

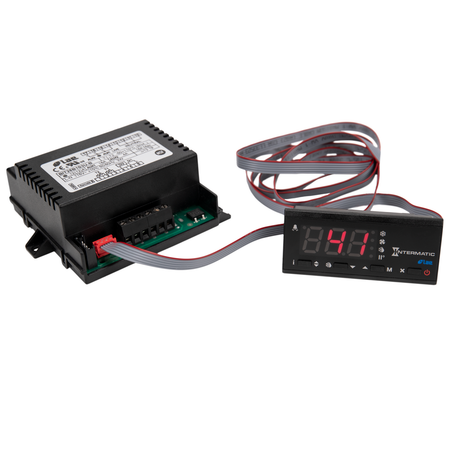

Intermatic BIT25-B1S3W-BI, Refrigeration Controller, 2 NTC/PTC Sensors, 1 Digital Input, 110-240 VAC, Screw Terminals, RS485, Propane Suitable (Display and cable sold separately)
Regular price
$196.76
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Controller, cable, and display must each be ordered separately. Split Controllers are designed to excel in more demanding applications and provide additional control options for more complex equipment. These controllers can be mounted to a wiring chase or with the refrigeration equipment, eliminating the need for long runs of control wiring.
- Multi-voltage.
- Remote mounting.
- Remote connectivity.
- Manage multiple alarms.
- Heating or cooling.
| Model Number | BIT25-B1S3W-BI |
| Description | Refrigeration Controller, 2 NTC/PTC Sensors, 1 Digital Input, 110-240 VAC, Screw Terminals, RS485, Propane Suitable |
| Color | Black |
| Material | Plastic |
| Minimum Cycle Time | 1 min |
| Mechanism Type | Electrical |
| Defrost LED Indicator | Red |
| Has Real-time Clock Face | No |
| Application Compatibilities | Commercial Refrigeration; Walk-in Cooler; Walk-in Freezer |
| Mounting Options | DIN |
| Enclosure Type | IP55 Front |
| Enclosure Mounting Type | Screw |
| Voltage Selection Type | Auto Voltage |
| Wiring Option | Screw terminal block |
| Input Voltage Range(s) | 230 VAC ±10%, 50/60 Hz |
| Number of Circuits Controlled | 3 |
| Electrical Life | 100,000 operations at full load |
| Temperature (operation) | 14 °F to 122 °F / (-10 °C to 50 °C) |
| RoHS Certification | Y |
| Warranty Period | 5-Year limited |
