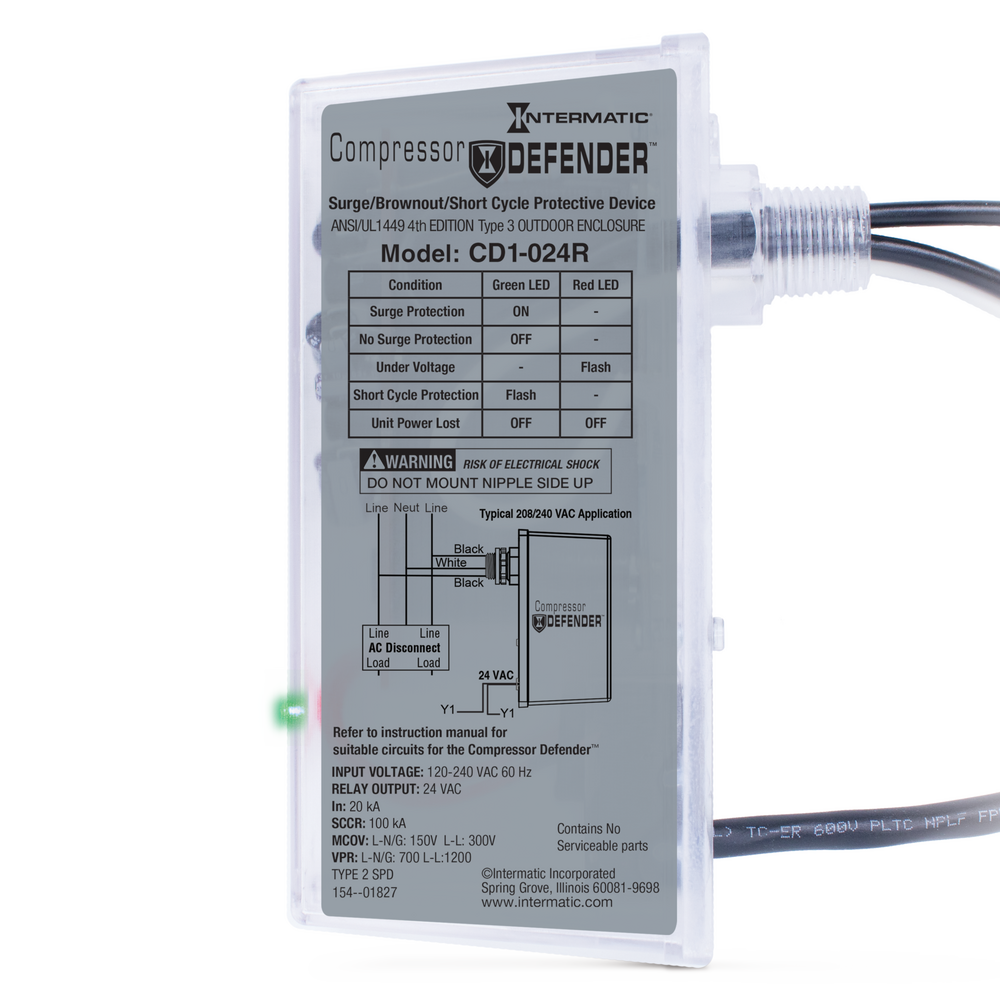

Intermatic CD1-024R, Surge Protective Device with Undervoltage Protection, 3-Mode, 120-240 VAC 1Ph, Type 2
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Compressor Defender is the only all-in-one undervoltage and surge power protection device on the HVAC Market, providing protection for central A/C and heat pump condensing units and their associated motors, controls and components—both electronic and mechanical. It can be installed inside the condensing unit or externally on the outdoor A/C disconnect. Autosense voltage technology protects at any voltage from 120-240 VAC, making it an ideal solution for residential or light commercial installations. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are associated with standard MOV technology. The device is also designed with integrated 3-minute short cycle time delay protection.
- TPMOV® surge protection technology.
- 3-year, $7500 connected equipment warranty.
- Auto-sense voltage technology.
- Quick-reacting, 5-line cycle undervoltage response time.
- 120/208-240 VAC universal input.
- 24 VAC/VDC, 2 A control thermostat output.
- 3-minute short cycle time delay.
- Two LED indicators provide real time status for quick and easy troubleshooting and functional visibility for end users.
- Surge protection complies with the latest UL 1449, 4th Edition, surge protective device requirements.
-
Undervoltage protection complies with AHRI standard 110-2016 Range B Protective Device.
| Model Number | CD1-024R |
| Description | Surge Protective Device with Undervoltage Protection, 3-Mode, 120-240 VAC 1Ph, Type 2 |
| Warranty Period | 3-Year limited |
| Connected Equipment Warranty Period | 3-Year |
| Modes of Protection | 3 (L1-N, L2-N, L1-L2) |
| Short Circuit Current Rating | 100 kA |
| Nominal Discharge Current | 20 kA |
| Surge Protection Technology | TPMOV® |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| Maximum Continuous Operating Voltage (L-N/G) | 150 |
