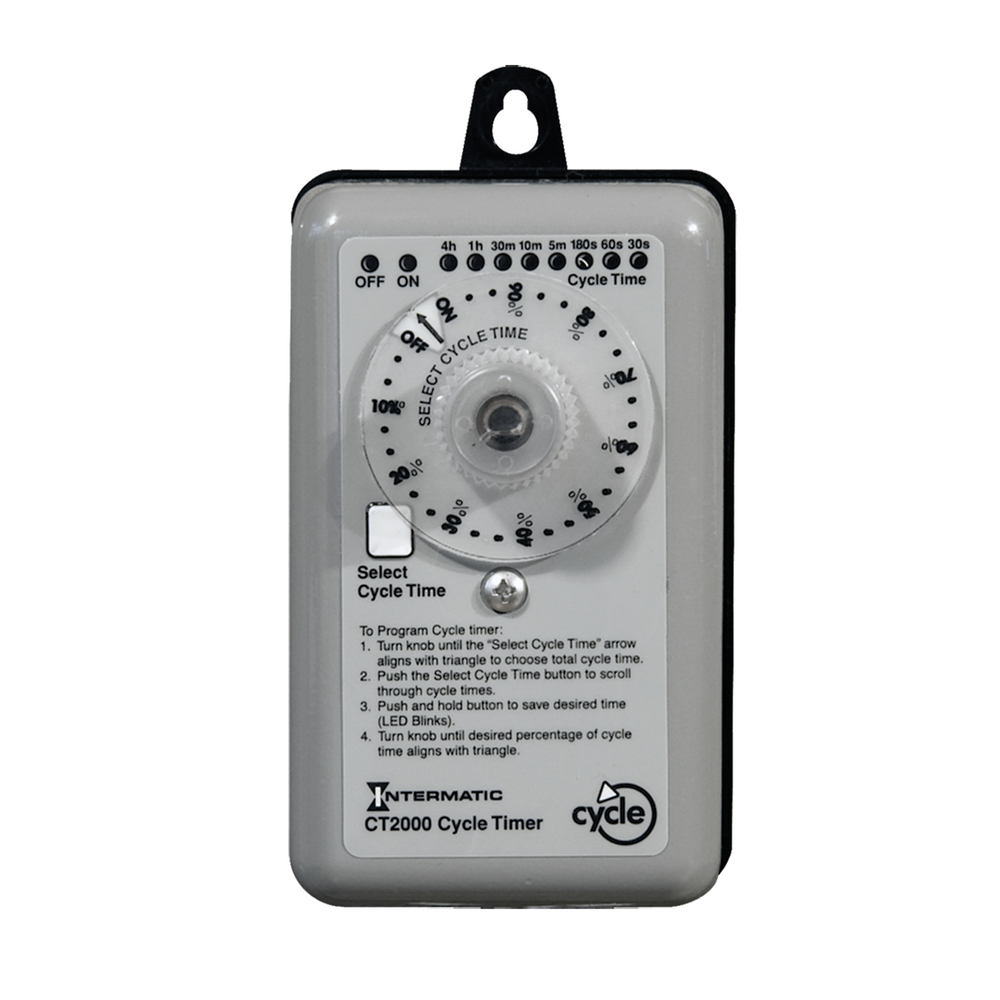

Intermatic CT2000, Percentage Cycle Time Switch, 120-240V, 60Hz, SPST, 20 Amps
Regular price
$301.32
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The CT2000 Percentage Cycle Time Switch is a field adjustable timer, offering true flexibility for repetitive cycle times via an upfront control button. The timer provides repetitive cycling for short-cycle applications. The timer enclosure includes two slotted mounting holes on 5" centers and a ½" knockout for conduit connection.
- Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours.
- Front cover button enables true flexibility for repetitive cycle times.
- Temporary and permanent manual overrides.
- 30 separate positions enable precise percentage ON time selection.
- User settings stored in non-volatile memory.
- No DIP switches to program cycle time.
- Type 3R indoor/outdoor aluminum enclosure.
| Model Number | CT2000 |
| Description | Percentage Cycle Time Switch |
| Switch Type | SPST |
| Color | Gray |
| Material | Metal |
| Enclosure Type | Outdoor type 3R metal |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
