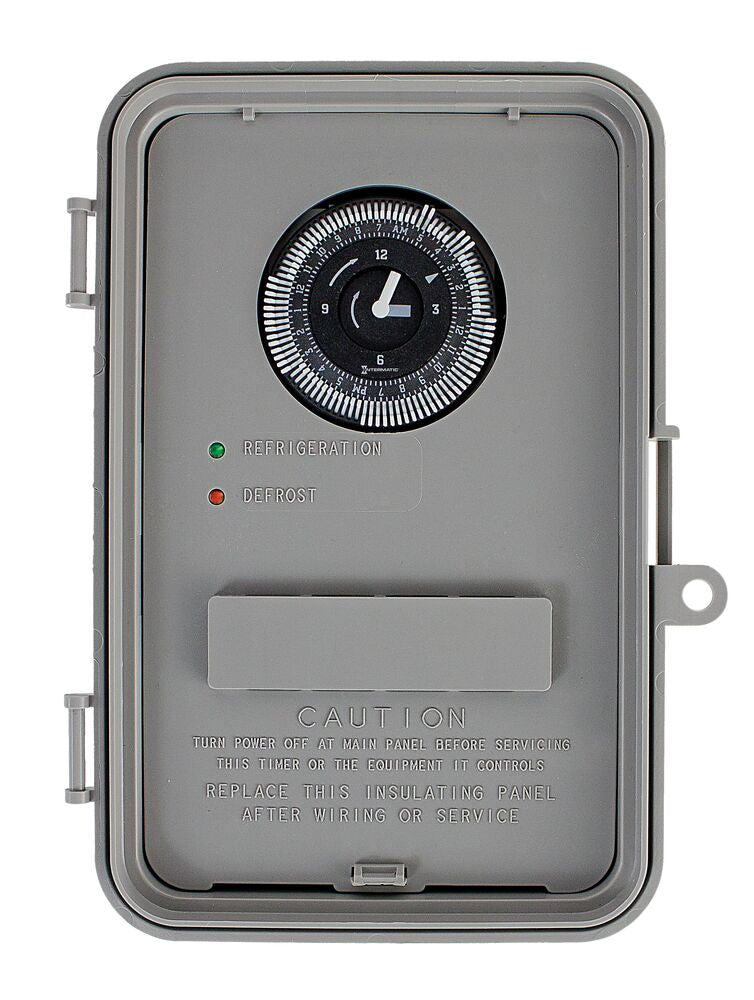

Intermatic DTAV40, 24-Hour Electromechanical Defrost Timer, NEMA 3R Raintight Outdoor Plastic Case, 40 Amps, 120-240 Volt
Regular price
$194.69
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.
- Improved relay performance.
- Automatically detects and adjusts input voltages (120-240 VAC).
- Moisture resistant conformal-coated board.
- Time Initiated, Temperature, Pressure or Time Terminated.
- Captive trippers are field adjustable to 15-minute intervals.
- No tools required – snaps into alternative enclosures.
- Moisture resistant conformal-coated board.
- LED indicators for defrost and refrigeration cycles.
- Defrost cycles are programmed independently.
- Real-time clock face for quick, easy and accurate setting.
| Model Number | DTAV40 |
| Description | 24-Hour Electromechanical Defrost Timer |
| Color | Gray |
| Minimum ON/OFF Times | 15 min |
| Maximum ON/OFF Times | 23 hours, 45 min |
| Time Initiation | Time |
| Time Termination | Temperature; Pressure; Time |
| Backup Protection Time | None |
| Mechanism Type | Electromechanical |
| Defrost LED Indicator | Red |
| Has Captive Trippers | Yes |
| Has Real-time Clock Face | Yes |
| Application Compatibilities | Commercial Refrigeration; Walk-in Freezer; Walk-in Cooler |
| Mounting Options | Bracket |
| Enclosure Type | Outdoor type 3R plastic |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Motor Load Ratings NO Ranges | 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Screw box lug terminals up to one #8 AWG wire |
| Input Voltage Range(s) | 120/240 VAC, 60 Hz |
| Switch Type | 1 SPDT, 1 NC SPST |
| Electrical Life | 50,000 operations at full load |
| Hz | 60 |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| RoHS Certification | Y |
| Warranty Period | 1-Year limited |
