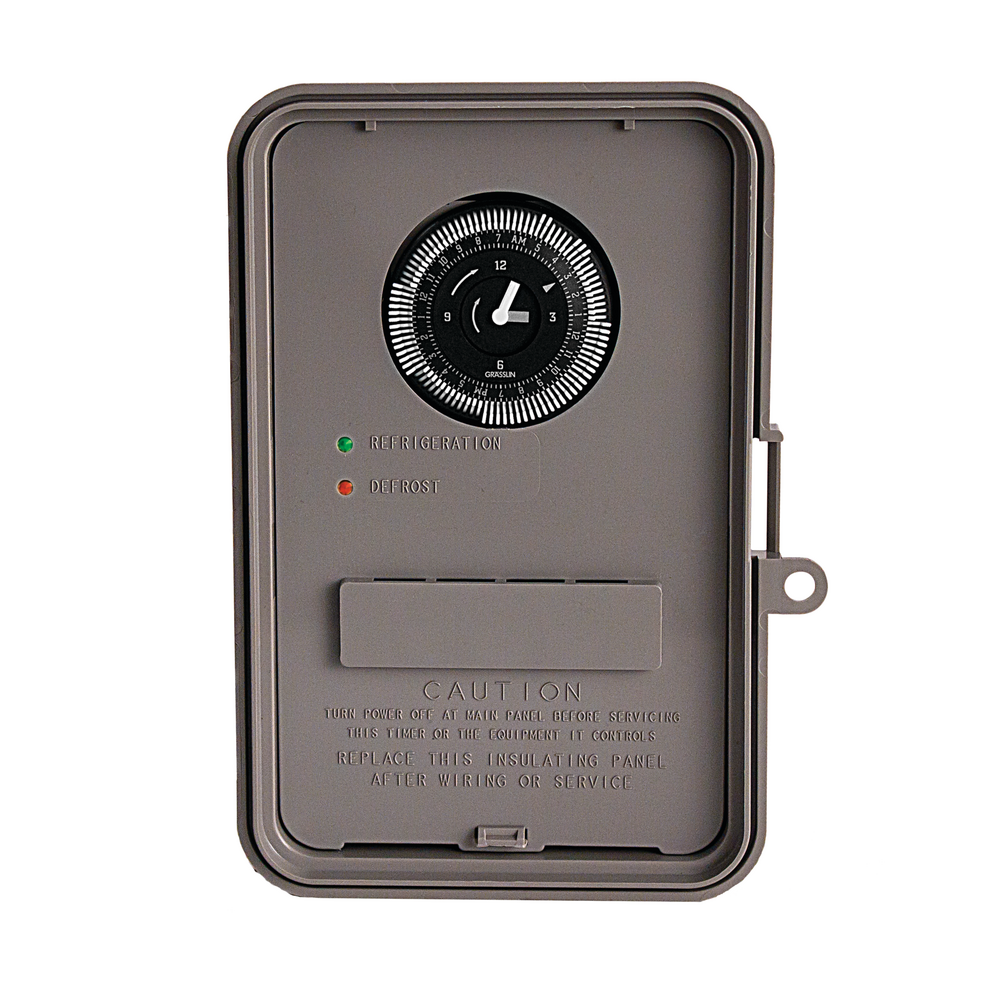

Intermatic DTAV40Q, 24-Hour and Auto Voltage Defrost Timer, NEMA 3R Outdoor Plastic Enclosure, 40 Amps, 120-240 Volt
Regular price
$360.94
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.
- Adaptive Defrost upgradeable (DTAV40, DTAV40M only) (See ICUBE).
- DTAV40 Series replaces over 40 competitive models.
- 40 A, 2 HP Rating.
- Auto-voltage automatically adjusts between 120 and 240 VAC.
- Q model features self-recharging battery backup with 72-hour carry-over.
- Can mount in an existing enclosure – no tools required for installation.
- Moisture resistant conformal-coated board.
- LED indicators for defrost and refrigeration cycles.
- Defrost cycles are programmed independently.
-
Real-time clock face for quick, easy and accurate setting.
| Model Number | DTAV40Q |
| Description | 24-Hour Electromechanical Defrost Timer |
| Color | Gray |
| Minimum ON/OFF Times | 15 min |
| Maximum ON/OFF Times | 23 hours, 45 min |
| Time Initiation | Time |
| Clock Drive Type | Quartz |
| Backup Restoration Time | 70 Hours |
| Backup Type | 72-hour Carry-over; Battery; Self-recharging |
| Time Termination | Temperature; Pressure; Time |
| Backup Protection Time | 72 Hours |
| Battery Service Type | Non-Replaceable |
| Mechanism Type | Electromechanical |
| Defrost LED Indicator | Red |
| Has Captive Trippers | Yes |
| Has Real-time Clock Face | Yes |
| Application Compatibilities | Commercial Refrigeration; Walk-in Freezer; Walk-in Cooler |
| Chemical Composition of the Battery Cell | Ni-MH |
| Mounting Options | Bracket |
| Enclosure Type | Outdoor type 3R plastic |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Motor Load Ratings NO Ranges | 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Screw box lug terminals up to one #8 AWG wire |
| Input Voltage Range(s) | 120/240 VAC, 50/60 Hz |
| Switch Type | 1 SPDT, 1 NC SPST |
| Electrical Life | 50,000 operations at full load |
| Hz | 50/60 |
| Temperature (operation) | 0 °F to 0 °F / (0 °C to 0 °C) |
| RoHS Certification | Y |
| Warranty Period | 1-Year limited |
