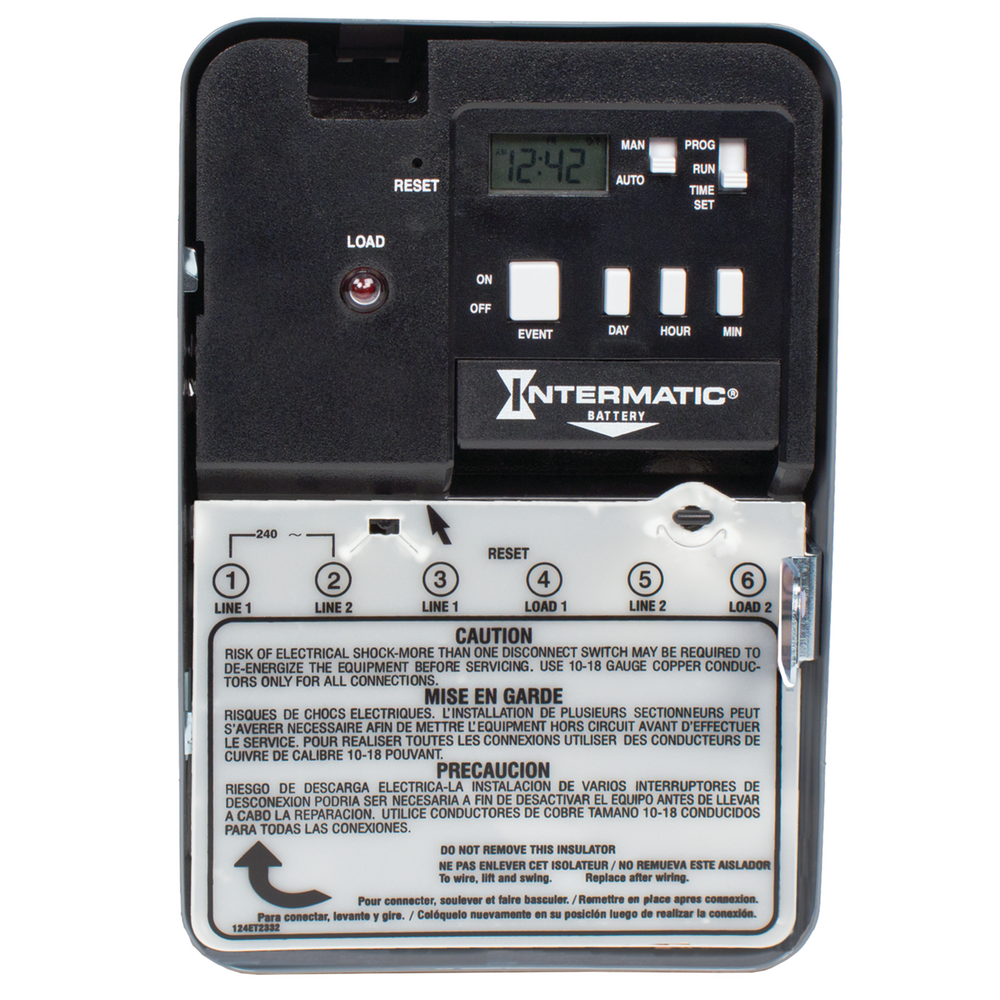

Intermatic EH40, Electronic Water Heater Time Switch, NEMA 1 Indoor Steel Case, DPST, 7200 Watts, 30 Amps, 240 Volt
Regular price
$227.02
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.
- 42 ON/OFF events per week.
- 7-day scheduling.
- To-the-minute programming and time-keeping accuracy.
- External override switch.
- LED load indicator.
- Replaceable battery backup.
| Model Number | EH40 |
| Description | Electronic Water Heater Time Switch |
| Color | Black |
| Minimum ON/OFF Times | 1 min |
| Operation Mode | 7 day |
| Backup Type | Battery |
| Battery Type | AA |
| Backup Protection Time | 3 Years |
| Battery Service Type | Replaceable |
| Has Manual Override | Yes |
| Chemical Composition of the Battery Cell | Alkaline |
| Enclosure Type | Indoor type 1 metal |
| Body Material | Metal |
| Has WiFi | No |
| Inductive Load Ratings NO Ranges | 30 A |
| Switch Rating For EH10 | 30 A Inductive, 30 A Resistive, 5 A Tungsten, 1 1/2 HP, 240 VAC, 60 Hz |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 240 VAC |
| Number of Circuits | 2 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Watts | 7200 |
| Time Display Format | Digital display |
| CSA Certification | cCSAus |
| RoHS Certification | N |
| Warranty Period | 1-Year limited |
