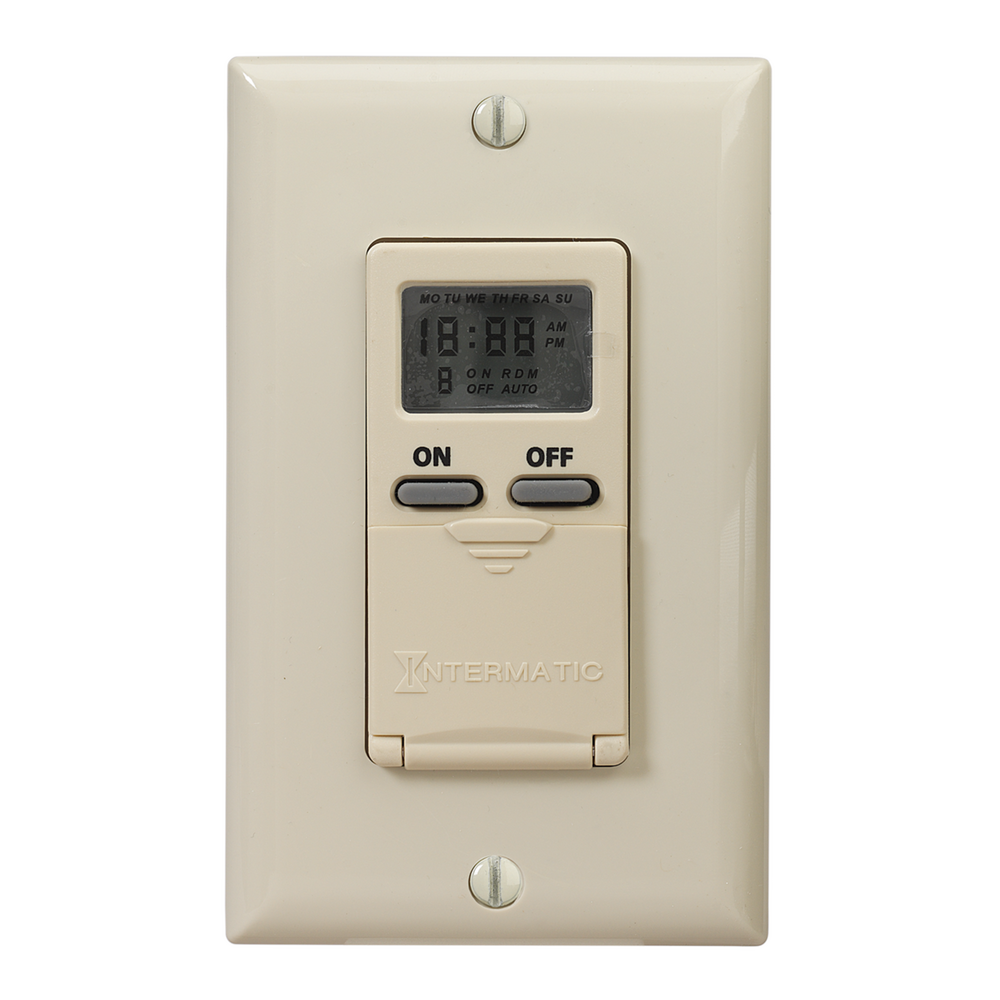

Intermatic EI500C, 7-Day Standard Programmable Timer, Single Pole, 125V, 15 Amp, Max. 1800 Watt, Ivory
Regular price
$65.02
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- 7-day programmable schedules with 14 ON/OFF events.
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance.
- Single-pole circuit.
- Incandescent/fluorescent/CFL/LED compatible.
- Built-in rechargeable, non-serviceable battery backup.
- Requires neutral connection.
- Backlit LCD display.
-
Decorator switch plate not included.
| Model Number | EI500C |
| Description | 7-Day Standard Programmable Timer, 125 VAC, 15A, Ivory |
| Color | Ivory |
| Minimum ON/OFF Times | 1 min |
| Time Presets | Flexible |
| Operation Mode | 24 hour |
| Mechanism Type | Digital/Electrical |
| Backup Type | Battery |
| Battery Service Type | Non-Replaceable |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Chemical Composition of the Battery Cell | Ni-MH |
| Number of Batteries Included | 1 |
| Wall Plate Configurations | Single-Gang |
| Resistive Heater | 15 A, 1875 W |
| Electronic Ballast LED | 4 A, 500 VA |
| Magnetic Ballast (NO) Range(s) | 8 A, 1000 VA |
| General Purpose (NO) Range(s) | 15 A, 125 VAC |
| Inductive Load Ratings NO Ranges | 1000 VA, 125 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1000 W |
| Input Voltage Range(s) | 125 VAC, 60 Hz |
| Wiring Configurations | Single |
| Neutral Connection Required | Yes |
| Hz | 60 |
| Amperage | 15 A |
| Temperature (operation) | 32 - 104 °F / 0 - 40 °C |
| UL Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
