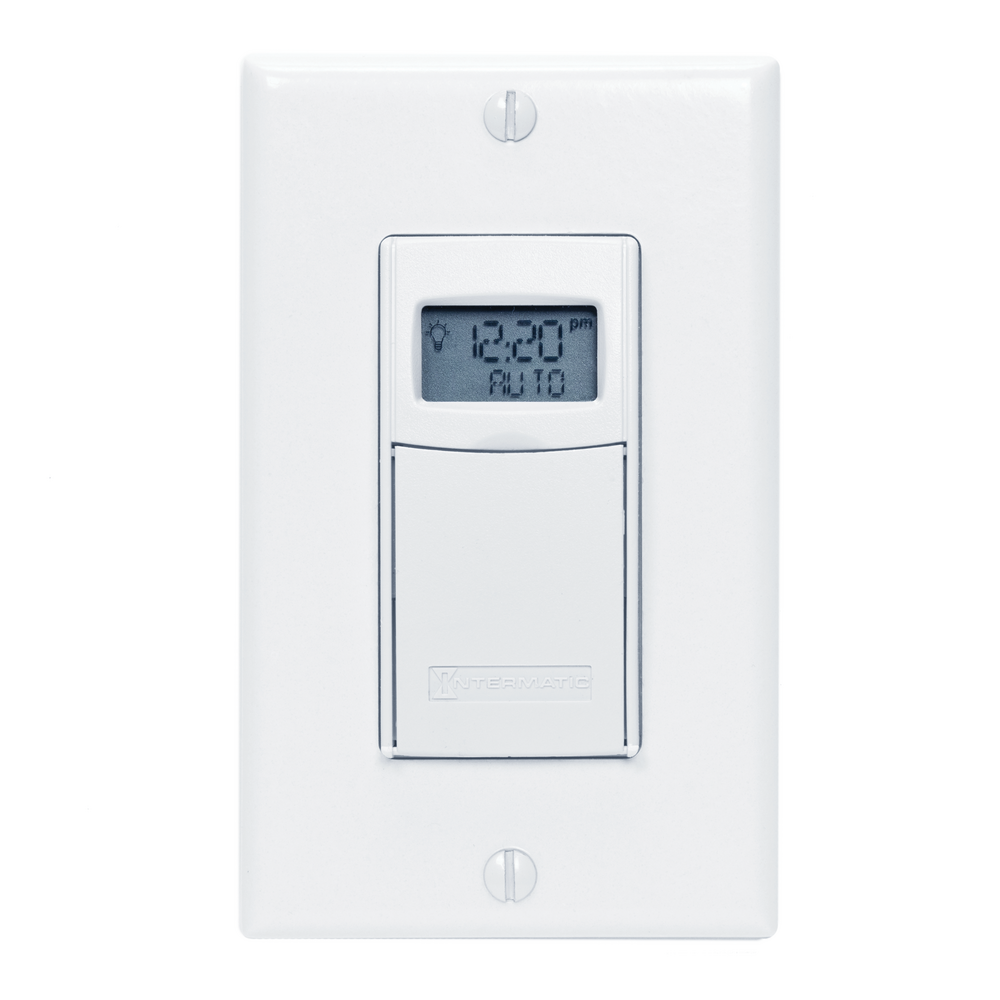

Intermatic EI600WC, 7-Day Heavy-Duty Programmable Timer, 40 On/Off Operations Per Week, Single Pole or 3 Way, 120-277V, 20A, White
Regular price
$110.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Highly versatile heavy-duty timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Wall plate not included.
- Versatile 7-day programmable schedules with up to 40 ON/OFF events.
- Astronomic clock feature determines dawn and dusk times.
- Automatic daylight saving time (DST) adjustment.
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance.
- Single or 3-way switch compatible. No neutral wire connection enables easy retrofitting and quicker installation.
- Incandescent/fluorescent/CFL/LED compatible.
- Isolated switch allows timer to be used with any load type, including AC and DC loads.
- Replaceable CR2 lithium battery provides up to three years of operation.
- Decorator switch plate not included.
-
User-programmable countdown plus 2-hour countdown override, ideal for meeting California Title 24 commercial exterior lighting manual override requirement.
| Model Number | EI600WC |
| Description | 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 20A, White |
| Color | White |
| Finish | Gloss |
| Time Presets | Flexible |
| Operation Mode | 24 hour; Countdown |
| Operation Features | Astronomic; Countdown; Daylight Saving Time |
| Countdown Time | 24 hrs |
| Mechanism Type | Digital/Electrical |
| Backup Type | Battery |
| Backup Protection Time | 3 Years |
| Battery Type | CR2 |
| Battery Service Type | Replaceable |
| Minimum ON/OFF Times | 1 min |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Chemical Composition of the Battery Cell | Lithium Manganese Dioxide (LiMnO2) |
| Number of Batteries Included | 1 |
| Wall Plate Configurations | Single-Gang |
| Resistive Heater | 20 A, 120-277 VAC |
| Electronic Ballast LED | 5 A, 120 VAC; 2 A, 277 VAC |
| DC Loads | 4 A, 12 VDC; 2 A, 28 VDC |
| Max Load Handling Capability | 20 A |
| Magnetic Ballast (NO) Range(s) | 16 A, 120-277 VAC |
| Inductive Load Ratings NO Ranges | 16 A, 120-277 VAC |
| Tungsten Incandescent (NO) Range(s) | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Wiring Configurations | Single; 3-Way |
| Neutral Connection Required | No |
| Watts | 1875 |
| Temperature (operation) | 32 - 104 °F / 0 - 40 °C |
| UL Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 5-Year limited |
