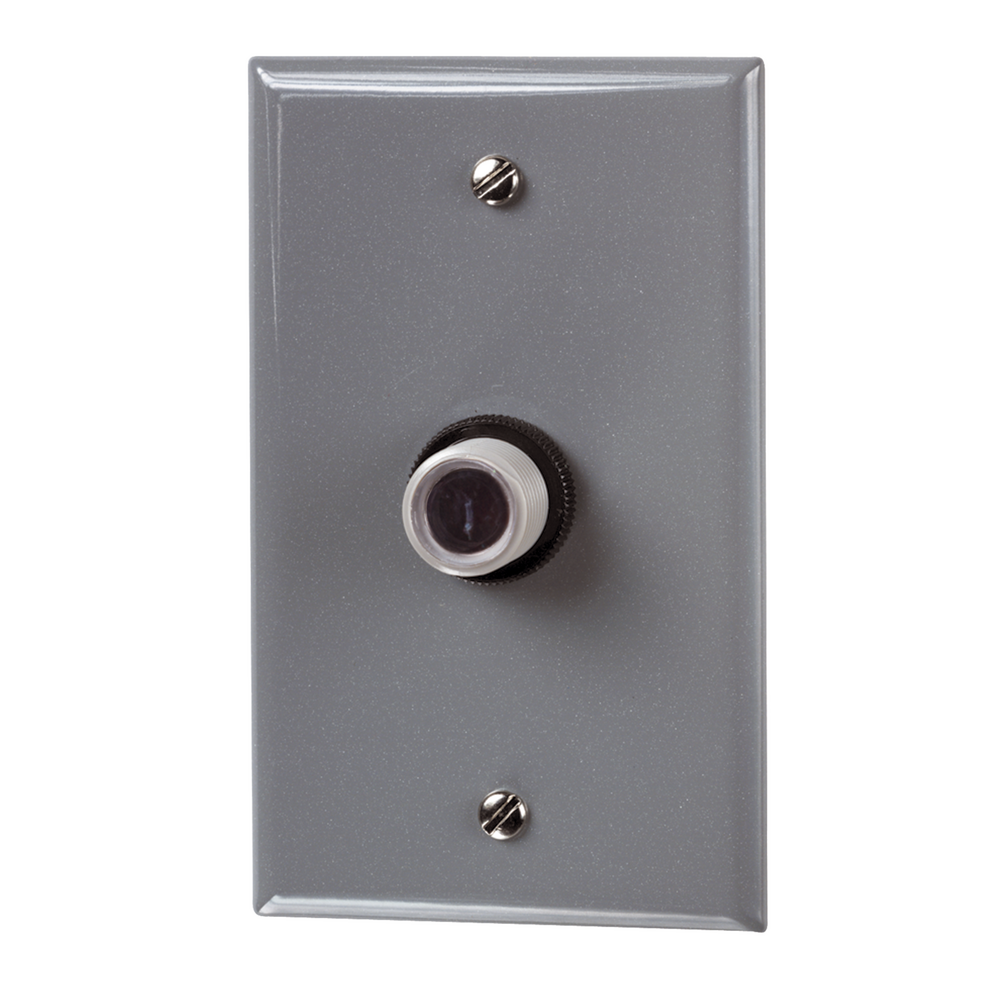

Intermatic EK4336S, NIGHTFOX EK Series Premium Wall Mount Electronic Photocontrol, 120-277V
Regular price
$45.18
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within single-gang in-wall juntion boxes. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
- Non-drift silicon light sensor with IR filter.
- DC relay with zero-crossing circuitry for extended life.
- Conformal coated PCB.
- 15-year design life.
- Exceeds 10,000 ON/OFF switching cycles.
- Fail ON mode.
- Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC).
- 255 J MOV surge protection element.
- Fits standard single-gang in-wall electrical boxes.
-
Wall Plate is included.
| Model Number | EK4336S |
| Description | NIGHTFOX EK Series Premium Wall Mount Electronic Photocontrol, 120-277V |
| Color | Gray |
| Sensor Time Delay | Instant ON; 2 sec to 5 sec OFF |
| Photocell Type | Silicon Diode |
| Photo Control Switch Type | Relay |
| Fail Mode | ON |
| Photocontrol Type | Electronic |
| Application Compatibilities | LED; Incandescent; HID |
| Photocontrol Style | In-Wall |
| Photocontrol Sensor Location | Front |
| Housing Material | Polycarbonate |
| Magnetic Ballast (NO) Range(s) | 1800 VA |
| Electronic Ballast Load Ratings NO Ranges | 6 A, 120-277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1000 W |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz (Nominal Voltage) |
| Operating Voltage Range(s) | 102-305 VAC |
| Surge Protection Technology | 255 J MOV, 5,000 A Surge |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 8-Year limited |
