Home » Intermatic EK4536, NIGHTFOX Select Grade Locking Type Electronic Photocontrol, 120-277V
Intermatic

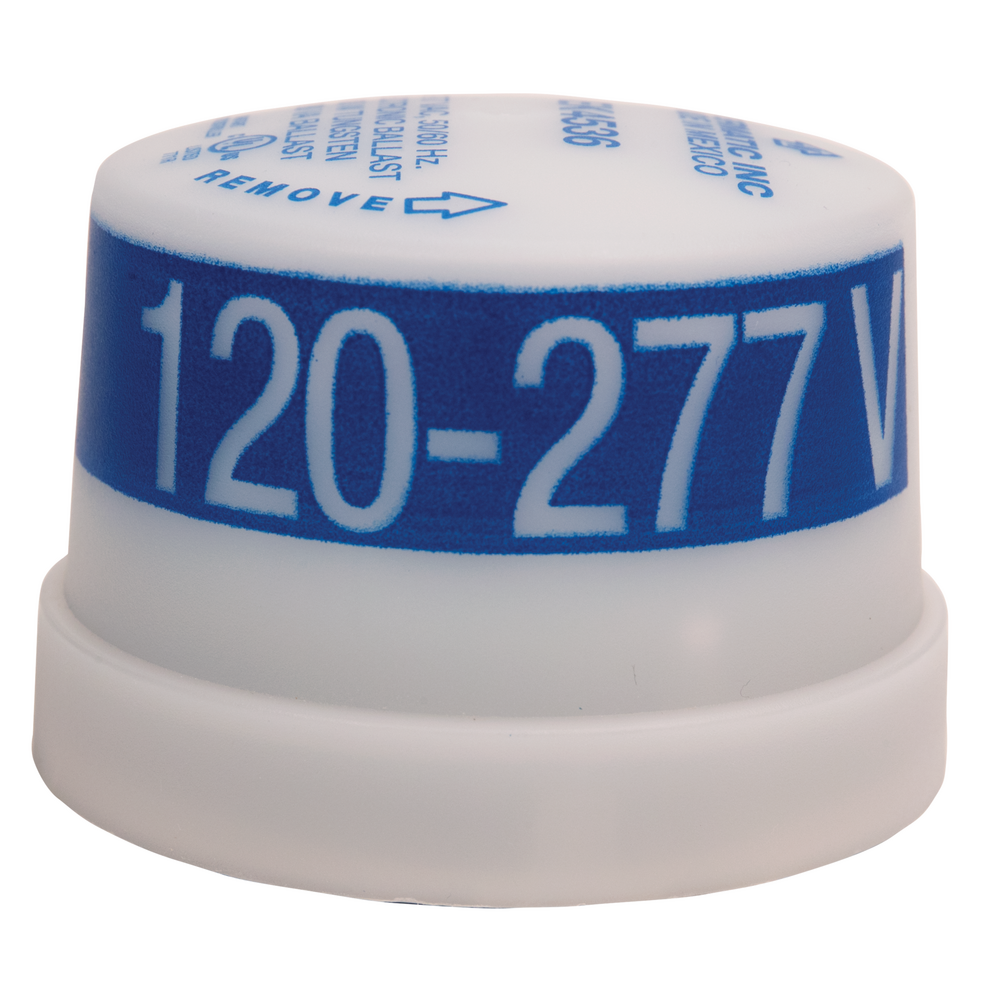

Intermatic EK4536, NIGHTFOX Select Grade Locking Type Electronic Photocontrol, 120-277V

In stock
SKU: EK4536
$35.64
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.

  • Non-drift silicon light sensor with IR filter.
  • DC relay with zero-crossing circuitry for extended life.
  • All components meet 15-year life expectancy.
  • Conformal coated PCB.
  • Exceeds 10,000 ON/OFF switching cycles.
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC).
  • 510 J MOV surge protection.
  • High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched.
Model Number EK4536
Description NIGHTFOX Select Grade Locking Type Electronic Photocontrol, 120-277 V
Color White with Blue Band
Sensor Time Delay  Instant ON; 2 sec to 5 sec OFF
Photocell Type  Silicon Diode
Photo Control Switch Type Relay
Fail Mode  ON
Photocontrol Type Electronic
Application Compatibilities LED; Incandescent; HID
Photocontrol Style Locking type
Photocontrol Sensor Location  Side
Housing Material Polypropylene
Magnetic Ballast (NO) Range(s) 1800 VA
Electronic Ballast Load Ratings NO Ranges  6 A, 120-277 VAC
Tungsten Incandescent Load Ratings NO Ranges 1000 W
Input Voltage Range(s) 120-277 VAC, 50/60 Hz (Nominal Voltage)
Operating Voltage Range(s)  102-305 VAC
Surge Protection Technology 510 J MOV
Temperature (operation) -40 °F to 158 °F / (-40 °C to 70 °C)
Usage Environments Outdoor
UL Certification  cULus
RoHS Certification Y
Warranty Period 8-Year limited
