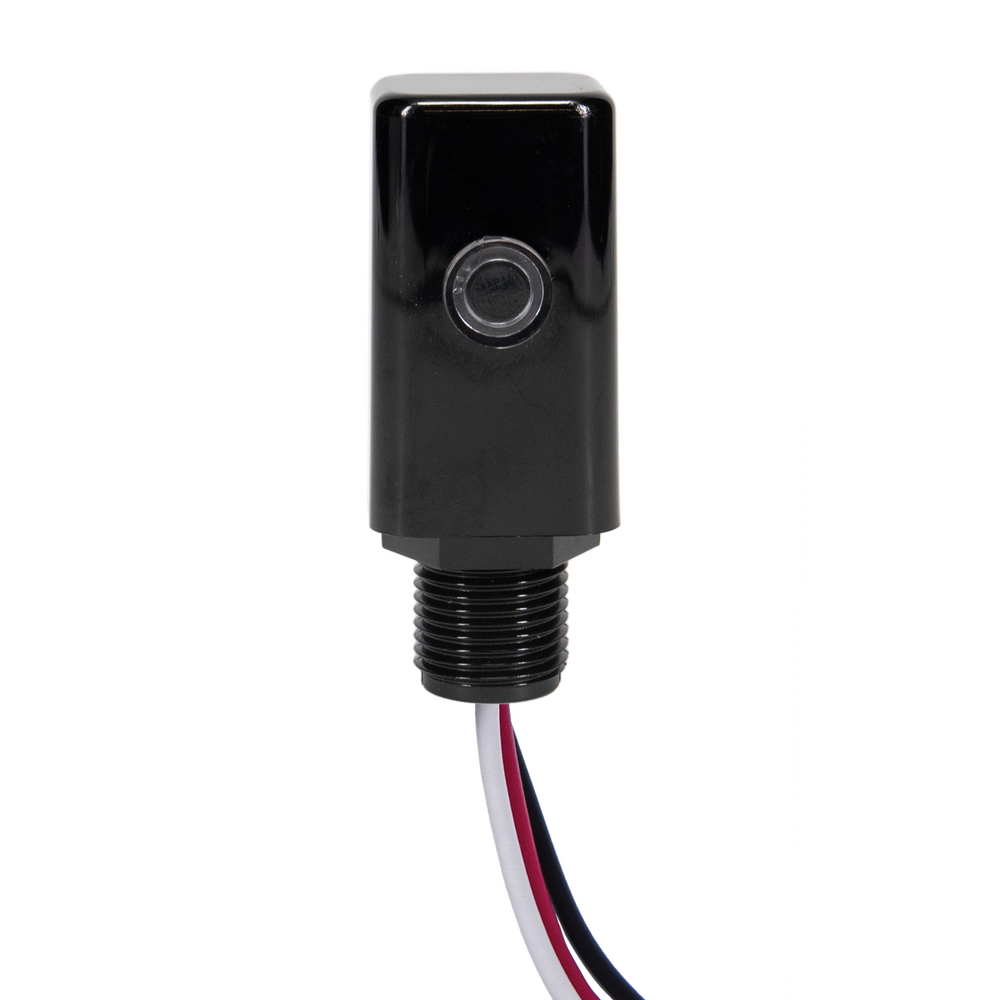

Intermatic ELC4136, NIGHTFOX ELC Series Stem Mount Electronic Photocontrol, 120-277V
Regular price
$38.32
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
NIGHTFOX ELC Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This standard, budget-friendly solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
- Phototransistor Light Sensor with Relay Switch.
- Dusk to Dawn Operation.
- Delay feature prevents unwanted switching.
- 10-year design life.
- Exceeds 3,650 ON/OFF switching cycles.
-
1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8" diameter.
| Model Number | ELC4136 |
| Description | NIGHTFOX ELC Series Stem Mount Electronic Photocontrol, 120-277 V |
| Color | Black |
| Sensor Time Delay | 15 sec to 30 sec ON, 2 sec to 5 sec OFF |
| Photocell Type | Phototransistor |
| Photo Control Switch Type | Relay |
| Fail Mode | ON |
| Photocontrol Type | Electronic |
| Application Compatibilities | LED; Incandescent; HID |
| Photocontrol Style | Stem Mount |
| Photocontrol Sensor Location | Side |
| Housing Material | Polycarbonate |
| Magnetic Ballast (NO) Range(s) | 1800 VA |
| Electronic Ballast Load Ratings NO Ranges | 2 A |
| Tungsten Incandescent Load Ratings NO Ranges | 430 W, 120 VAC; 1000 W, 277 VAC |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz (Nominal Voltage) |
| Operating Voltage Range(s) | 120-277 VAC |
| Hz | 50/60 |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 5-Year limited |
