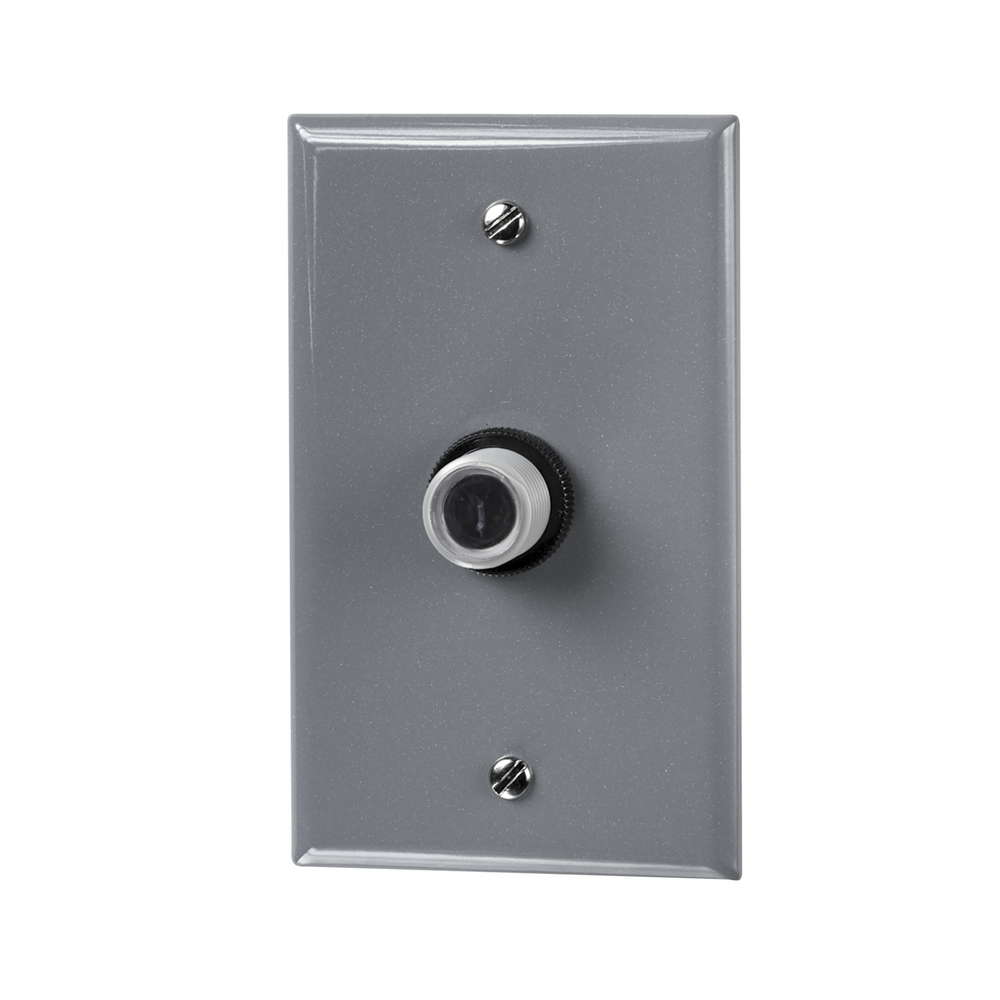

Intermatic ELC4336, NIGHTFOX ELC Series Wall Mount Electronic Photocontrol, 120-277V

In stock
SKU: ELC4336
$39.67
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

NIGHTFOX ELC Series Electronic Photocontrols are designed for permanent installation within single-gang in-wall juntion boxes. This standard, budget-friendly solution is suitable for use with high-efficiency, long-life LED luminaires. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

  • Phototransistor Light Sensor with Relay Switch.
  • Dusk to Dawn Operation.
  • Delay feature prevents unwanted switching.
  • 10-year design life.
  • Exceeds 3,650 ON/OFF switching cycles.
  • Fits standard single-gang in-wall electrical boxes.
  • Wall plate is included.
Model Number ELC4336
Description NIGHTFOX ELC Series Wall Mount Electronic Photocontrol, 120-277 V
Color Black
Sensor Time Delay  15 sec to 30 sec ON, 2 sec to 5 sec OFF
Photocell Type  Phototransistor
Photo Control Switch Type Relay
Fail Mode  ON
Photocontrol Type Electronic
Application Compatibilities LED; Incandescent; HID
Photocontrol Style In-Wall
Photocontrol Sensor Location  Front
Housing Material Polycarbonate
Magnetic Ballast (NO) Range(s) 1800 VA
Electronic Ballast Load Ratings NO Ranges  2 A
Tungsten Incandescent Load Ratings NO Ranges 430 W, 120 VAC; 1000 W, 277 VAC
Wiring Option Wire leads
Input Voltage Range(s) 120-277 VAC, 50/60 Hz (Nominal Voltage)
Operating Voltage Range(s)  120-277 VAC
Hz 50/60
Temperature (operation) -40 °F to 158 °F / (-40 °C to 70 °C)
Usage Environments Outdoor
UL Certification  cULus
RoHS Certification Y
Warranty Period 5-Year limited
