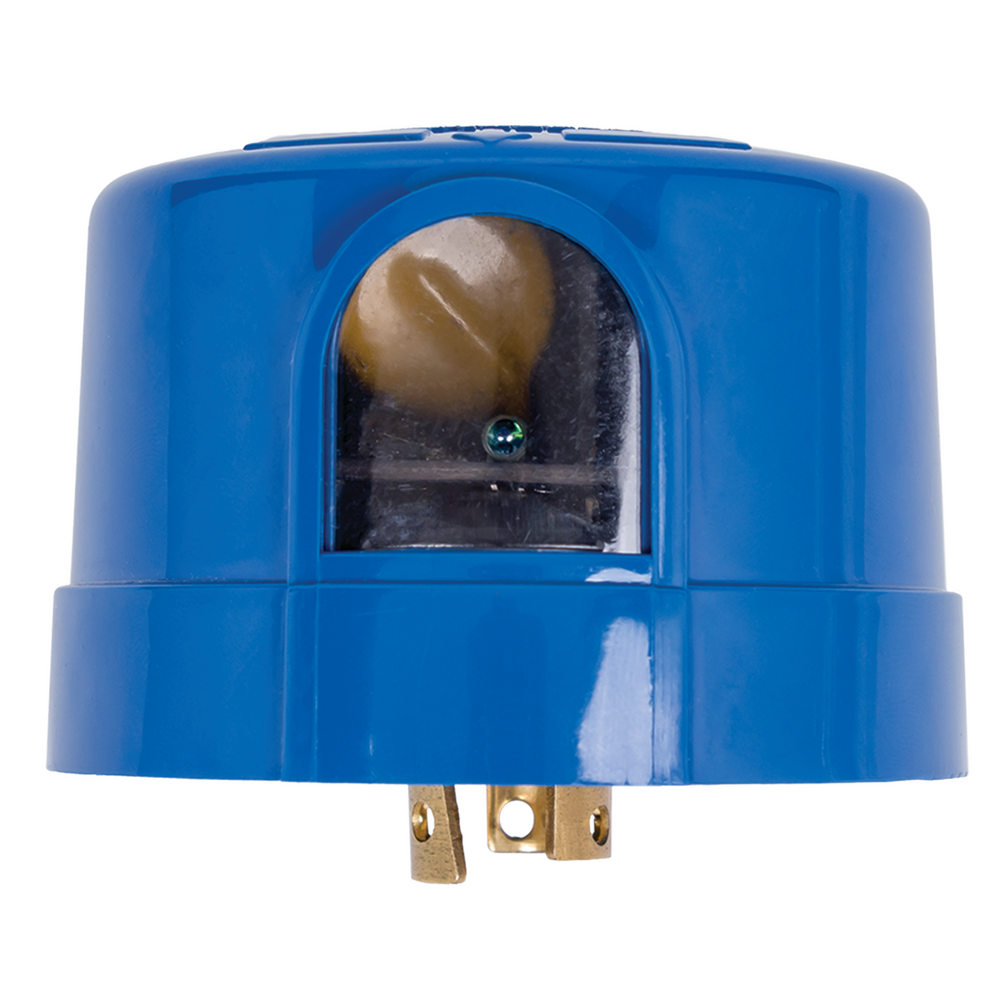

Intermatic ELC4536, NIGHTFOX Standard Grade Locking Type Electronic Photocontrol, 120-277V
Regular price
$23.11
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution.
- Non-drift silicon light sensor with IR filter.
- All components meet 10-year life expectancy.
- Exceeds 5,000 ON/OFF switching cycles.
- Ideal for single HID and LED fixtures (up to 550 W @ 277 VAC).
- Power-up ON delay (45-60 sec) for easy installation verification and troubleshooting.
-
510 J MOV surge protection.
| Model Number | ELC4536 |
| Description | NIGHTFOX Standard Grade Locking Type Electronic Photocontrol, 120-277 V |
| Color | Blue |
| Sensor Time Delay | Instant ON; 2 sec to 5 sec OFF |
| Photocell Type | Silicon Diode |
| Photo Control Switch Type | Relay |
| Fail Mode | ON |
| Photocontrol Type | Electronic |
| Application Compatibilities | LED; Incandescent; HID |
| Photocontrol Style | Locking type |
| Photocontrol Sensor Location | Side |
| Housing Material | Polycarbonate with Acrylic Window |
| Magnetic Ballast (NO) Range(s) | 1800 VA |
| Electronic Ballast Load Ratings NO Ranges | 6 A, 120-277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1000 W |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz (Nominal Voltage) |
| Operating Voltage Range(s) | 102-305 VAC |
| Surge Protection Technology | 510 J MOV |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 6-Year limited |
