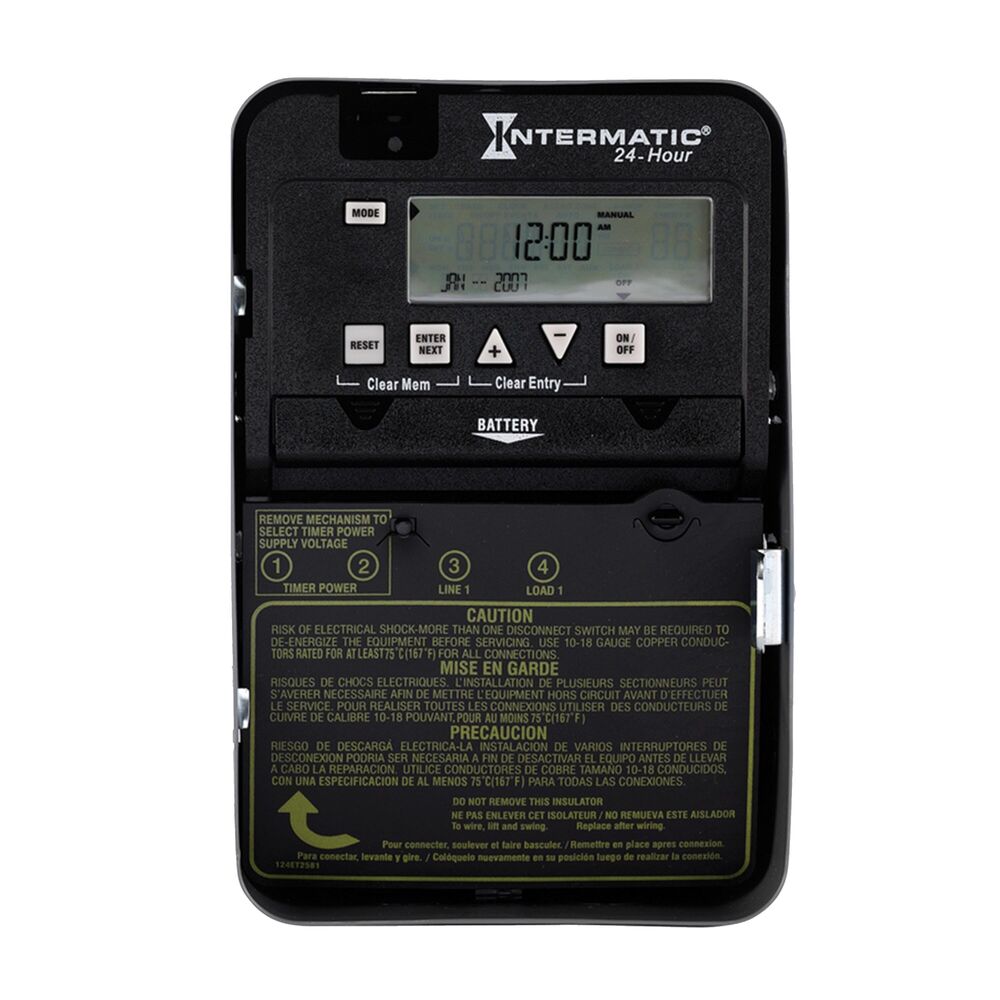

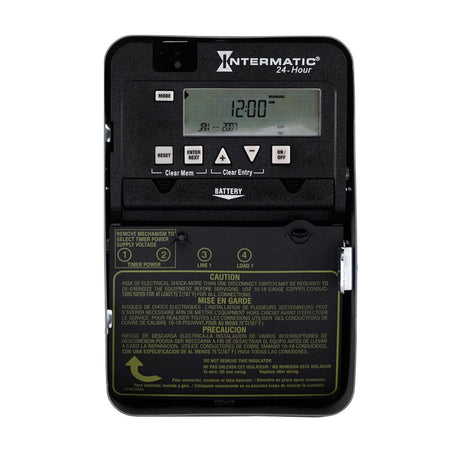

Intermatic ET1105C, 24-Hour 1 Circuit Electronic Control, NEMA 1 Indoor Metal Enclosure, SPST, 30 Amps, 120-277 Volt
Regular price
$299.88
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. These are 24-hour timers.
- Selector switch to determine input voltage between 120-277 VAC.
- Up to 28 events total.
- To-the-minute accuracy.
- Temporary override or permanent manual override.
-
Automatic Daylight Saving Time adjustment.
| Model Number | ET1105C |
| Description | 24-Hour 1 Circuit Electronic Control, 120-277 VAC, SPST, Indoor Metal Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Times | Indefinite |
| Time Presets | Flexible |
| Operation Mode | 24 hour |
| Daylight Savings Adjustment | Automatic |
| Backup Type | Battery |
| Battery Type | AAA |
| Battery Service Type | Replaceable |
| Chemical Composition of the Battery Cell | Alkaline |
| Enclosure Type | Indoor type 1 metal |
| Has WiFi | No |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Inductive Load Ratings NO Ranges | 30 A, 120/240 VAC |
| Electronic Ballast Load Ratings NO Ranges | 1 A, 120-277 VAC |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 5 A, 120/240 VAC |
| Voltage Selection Type | Selector Switch |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 6 W |
| Electronic Series | ET1100 Series |
| Hz | 50/60 |
| Amperage | 30 A |
| Time Display Format | Digital display |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N |
| Warranty Period | 1-Year limited |
