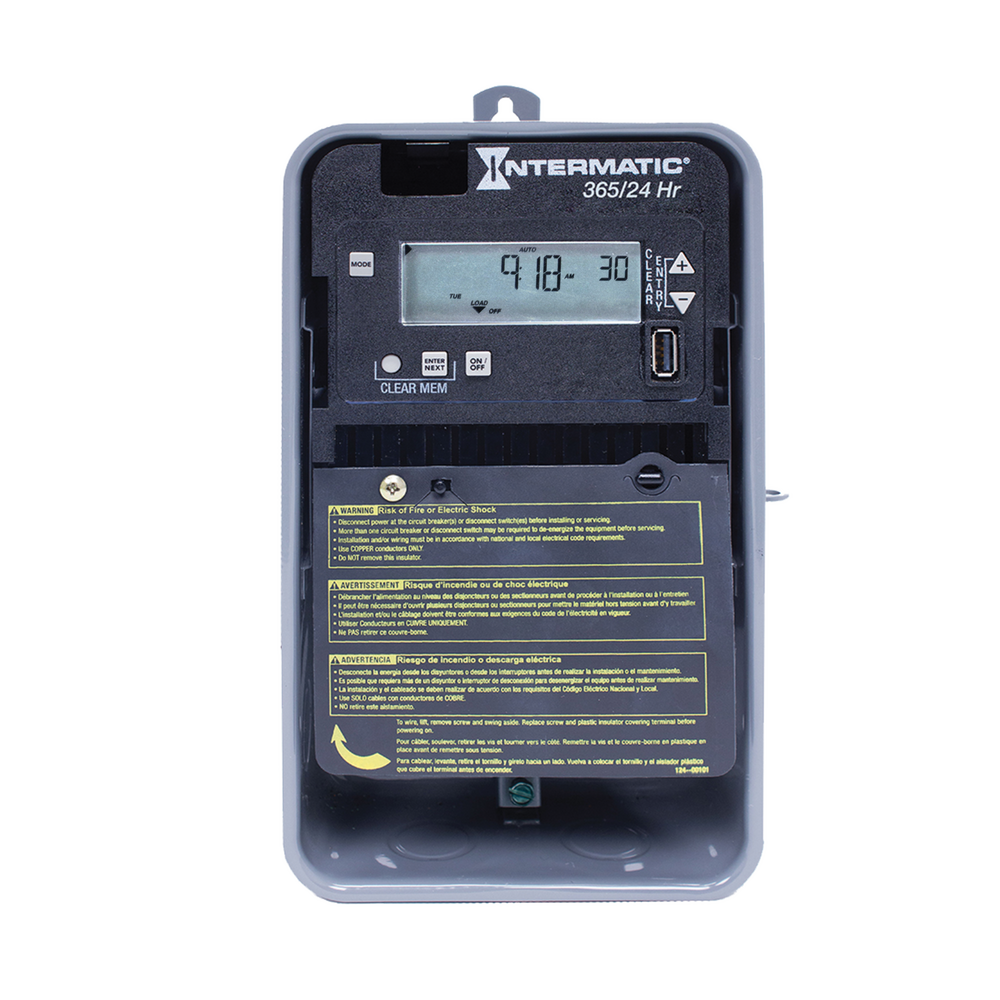

Intermatic ET2105CR, 24-Hour/365 Day 1-Circuit Electronic Control, Indoor/Outdoor Nema 3R Metal Enclosure, SPST, 120-277 Volt
Regular price
$354.35
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. These are 24-hour timers.
- 100-hour supercapacitor eliminates the need for batteries.
- Up to 96 set points or events.
- Up to 50 holiday blocks with schedule capabilities.
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz.
- Additional mode of operation turns the ON/OFF buttons into 2-hour overrides.
- Configurable outputs allow the control of various voltages and applications.
- Relays incorporate zero-crossing technology to extend the life of the control.
- Non-volatile EEPROM memory protects programming indefinitely.
- LED compatible.
-
USB port makes transferring and saving of schedules easy.
| Model Number | ET2105CR |
| Description | 24-Hour/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor/Outdoor Nema 3R Metal Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Times | Indefinite |
| Time Presets | Flexible |
| Operation Features | Holiday |
| Operation Mode | 24 hour |
| Daylight Savings Adjustment | Automatic |
| Backup Restoration Time | 30 Minutes |
| Backup Type | Supercapacitor |
| Backup Protection Time | 100 Hour |
| Application Compatibilities | LED |
| Enclosure Type | Indoor/outdoor type 3R metal |
| Body Material | Type 3R Indoor/Outdoor Metal Enclosure |
| Has WiFi | No |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Inductive Load Ratings NO Ranges | 30 A, 120/240 VAC |
| Electronic Ballast Load Ratings NO Ranges | 10 A, 120/277 VAC |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 5 A, 120-277 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 3 W |
| Electronic Series | ET2000 Series |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| CSA Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 2-Year limited |
