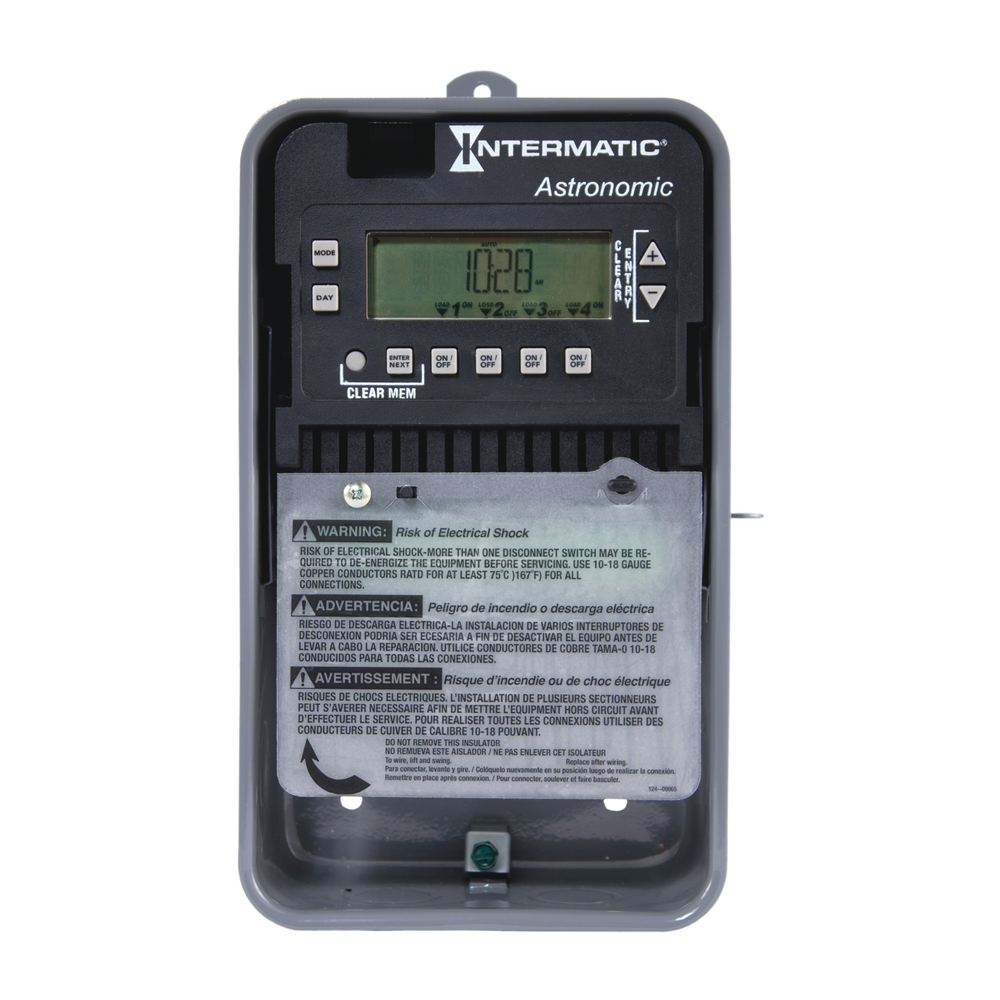

Intermatic ET8415CR, Astronomic 7-Day 4-Circuit Electronic Control, Indoor/Outdoor NEMA 3R Metal Enclosure, 4-SPST, 120-277 Volt
Regular price
$790.72
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ET8415CR 4-circuit 7-day Astronomic time switch features independent 7-day programming to provide flexibility for applications where load switching differs each day of the week. This time switch provides to-the-minute programming, 28 ON/28 OFF (56 events) which can be applied to any combination of circuits and days, 100-hour Supercap backup for power loss, and automatic daylight saving time corrections without the need of user interaction. This time switch is housed in a lockable type 3R enclosure to protect from vandalism and unauthorized tampering. These are 7-day timers with an astronomic feature.
- Auto-voltage operation from 120-277 VAC.
- Up to 56 fixed events and 8 Astronomic events that can be combined.
- Allows independent dusk/dawn settings for each circuit.
- Temporary override or permanent manual override.
- Automatic Daylight Saving Time adjustment.
- Configurable outputs allow the control of various voltages and applications.
-
100-hour supercapacitor eliminates the need for batteries.
| Model Number | ET8415CR |
| Description | Astronomic 7-Day 4-Circuit Electronic Control, 120-277 VAC, 4-SPST, Indoor/Outdoor Metal Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Times | Indefinite |
| Operation Features | Astronomic |
| Operation Mode | 7 day |
| Daylight Savings Adjustment | Automatic |
| Backup Type | Supercapacitor |
| Battery Type | AAA |
| Battery Service Type | Replaceable |
| Enclosure Type | Indoor/outdoor type 3R metal |
| Body Material | Metal |
| Has WiFi | No |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Inductive Load Ratings NO Ranges | 30 A, 120/240 VAC |
| Motor Load (NO) Range(s) | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| Electronic Ballast LED | 4.5 A |
| Tungsten Incandescent (NO) Range(s) | 5 A, 120-240 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Number of Circuits | 4 |
| Switch Type | 4xSPST; 2xDPST |
| Maximum Power Consumption (W) | 7 W |
| Electronic Series | ET8000 Series |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| CSA Certification | cULus |
| RoHS Certification | N |
| Warranty Period | 1-Year limited |
