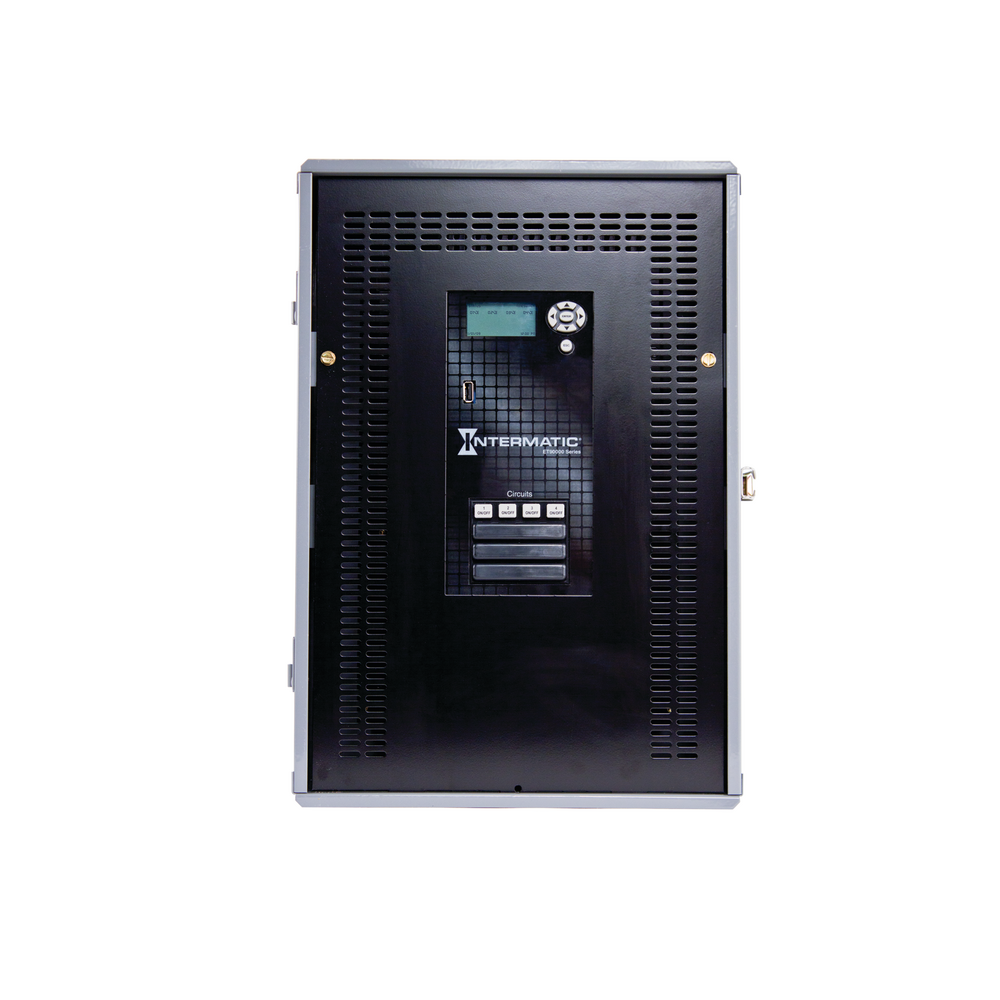

Intermatic ET90415CR, Astronomic 365-Day 4-Circuit Electronic Control, NEMA 3R Outdoor Metal Enclosure, 4-SPDT/2-DPDT, 120-277 Volt, Ethernet Included
Regular price
$2,104.40
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App provides real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz.
- Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately).
- Advanced scheduling including relative events, such as fourth Thursday of November or first week of year.
- 30 A rated contacts.
- 100-hour supercapacitor eliminates the need for batteries.
- USB connection for uploading, downloading and transferring programs.
- Easy-to-follow on-screen menus for programming to-the-minute accuracy.
- Non-volatile memory protects programming indefinitely.
- Firmware can be upgraded in-field via USB or Ethernet.
-
Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models.
| Model Number | ET90415CR |
| Description | Astronomic 365-Day 4-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 4- SPDT/2-DPDT, Outdoor Metal Enclosure, Ethernet Included |
| Color | Gray |
| Maximum ON/OFF Times | Indefinite |
| Time Presets | Flexible |
| Operation Features | Astronomic; Holiday |
| Operation Mode | 365 day |
| Data Transfer Options | Ethernet Optional/USB |
| Daylight Savings Adjustment | Automatic |
| Backup Restoration Time | 30 Minutes |
| Backup Type | Supercapacitor |
| Backup Protection Time | 100 Hour |
| Enclosure Type | Outdoor type 3R metal |
| Finish | Gloss |
| Has WiFi | No |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Magnetic Ballast (NC) Range(s) | 3 A, 120-277 VAC |
| Resistive (NO) Range(s) | 20 A, 28VDC; 30 A, 12-240 VAC |
| Resistive (NC) Range(s) | 10 A, 28 VDC; 10 A, 12-240 VAC |
| Pilot Duty (NO) Range(s) | 470 VA, 120-240 VAC |
| Pilot Duty (NC) Range(s) | 275 VA, 120-240 VAC |
| General Purpose (NC) Range(s) | 10 A, 12-240 VAC |
| General Purpose (NO) Range(s) | 30 A, 12-240 VAC |
| Electronic Ballast Load Ratings NO Ranges | 8 A, 120-277 VAC |
| Motor Load Ratings NC Ranges | 1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 5 A, 12-120 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Number of Circuits | 4 |
| Switch Type | 4xSPDT; 2xDPDT |
| Maximum Power Consumption (W) | 50 W |
| Electronic Series | ET90000 Series |
| Hz |
50/60 |
| Amperage | 30 A |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 3-Year limited |
