Intermatic ETCB28253PCR, Electronic All-Purpose Contractor Box, 120-480V, 60 Hz, 3PST, Outdoor Metal Enclosure
Regular price
$1,059.86
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

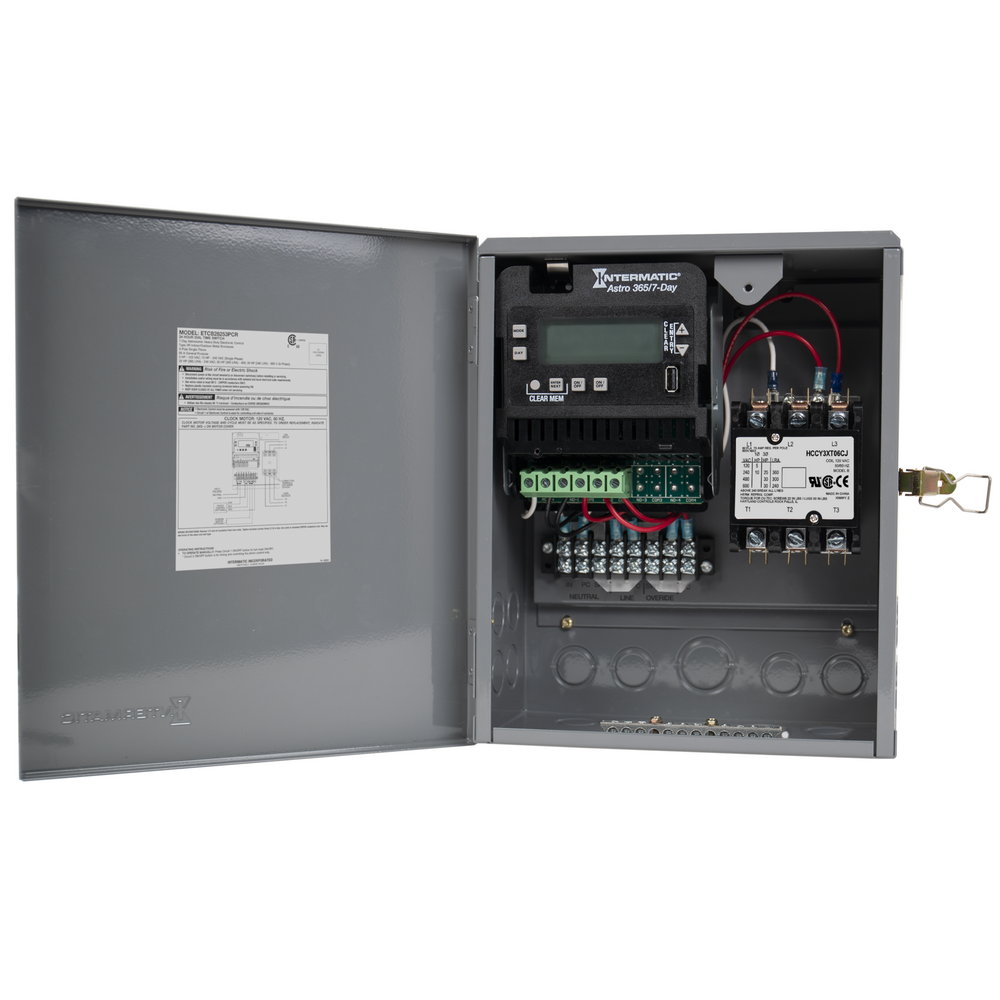

The ETCB28253PCR Electronic All-Purpose Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, a 60 A contactor, as well as inputs for overrides and surge protective devices.
- 7-Day/365 Day Astronomic Scheduling.
- Up to 96 Scheduling set points.
- Up to 50 Holiday/Exception Period set points.
- USB port for backing up or transferring schedules.
- Built-in 60 A 3-Pole contactor for more robust loads.
- Input for optional "Timed" photo control override.
- Input for other types of switches/sensors.
- Terminals for adding Surge Protection.
- 100-hour supercapacitor eliminates the need for battery replacement.
-
Requires 120 VAC 60 Hz for powering the control.
| Model Number | ETCB28253PCR |
| Description | Electronic All-Purpose Contractor Box, 120 - 480 VAC, 60 Hz, 3PST, Outdoor Metal Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Times | Indefinite |
| Time Presets | Flexible |
| Operation Features | Astronomic; Holiday; Override |
| Backup Type | Supercapacitor |
| Backup Protection Time | 100 Hour |
| Enclosure Type | Indoor/outdoor type 3 metal |
| Has WiFi | No |
| Resistive (NO) Range(s) | 60 A |
| General Purpose (NO) Range(s) | 60 A |
| Motor Load (NO) Range(s) | 5 HP @ 120 VAC;10 HP @ 240 VAC, (Single-Phase);25 HP (360 LRA) @ 240 VAC;30 HP (300 LRA) @ 480 VAC |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Switch Type | 3xSPST |
| Electronic Series | ETCB Series |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| UL Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 2-Year limited |
