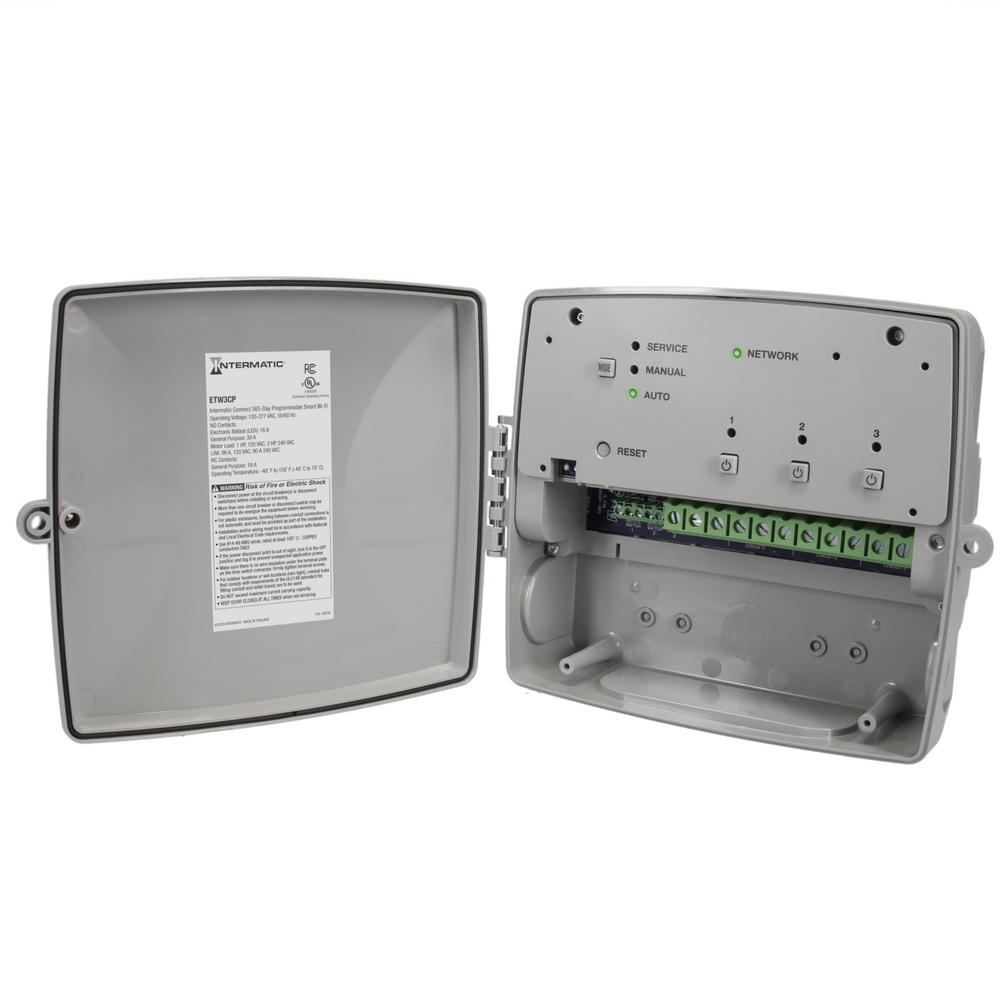

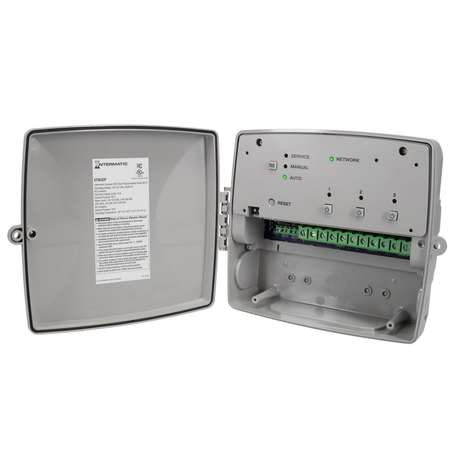

Intermatic ETW3CP, Intermatic Connect 365-Day Programmable Smart Wi-Fi Timer, 120-277V, 3xSPDT, Indoor/Outdoor Plastic Enclosure
Regular price
$584.60
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ETW Series offers 365 day scheduling, off-site access, and remote ON/OFF control through the easy-to-use Intermatic Connect app.
- App based configuration and scheduling.
- Up to 256 set points or events.
- Up to 64 holiday blocks with schedule capabilities.
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz.
- Local or remote connectivity.
- Configurable outputs allow the control of various voltages and applications.
- Relays incorporate zero-crossing technology to extend the life of the control.
- Non-volatile EEPROM memory protects programming indefinitely.
-
LED compatible.
| Model Number | ETW3CP |
| Description | Intermatic Connect 365-Day Programmable Smart Wi-Fi Timer, 120-277 VAC, 3xSPDT, Indoor/Outdoor Plastic Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Times | Indefinite |
| Time Presets | Flexible |
| Operation Features | Holiday |
| Operation Mode | 365 day |
| Daylight Savings Adjustment | Automatic |
| Backup Type | Battery |
| Backup Protection Time | 10 Years |
| Battery Service Type | Non-Replaceable |
| Application Compatibilities | Electronic Ballast; General Purpose; LED; Motor Load |
| Chemical Composition of the Battery Cell | Lithium Manganese Dioxide (LiMnO2) |
| Enclosure Type | Outdoor type 3 |
| Finish | Satin |
| Has WiFi | Yes |
| Electronic Ballast LED | 16 A |
| General Purpose (NC) Range(s) | 10 A |
| General Purpose (NO) Range(s) | 30 A |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC; LRA: 96 A, 120 VAC; 90 A, 240 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Number of Circuits | 3 |
| Switch Type | SPDT |
| Maximum Power Consumption (W) | 7 W |
| Hz | 50/60 |
| Amperage | 30 A |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 3-Year limited |
