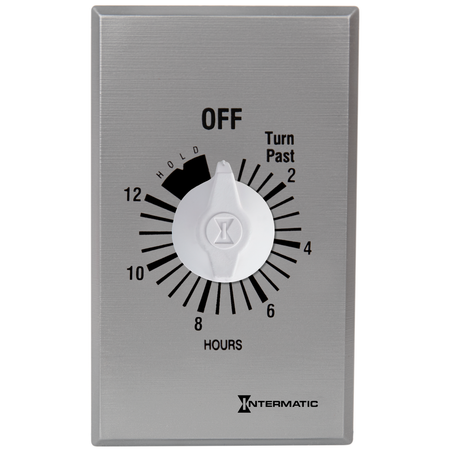

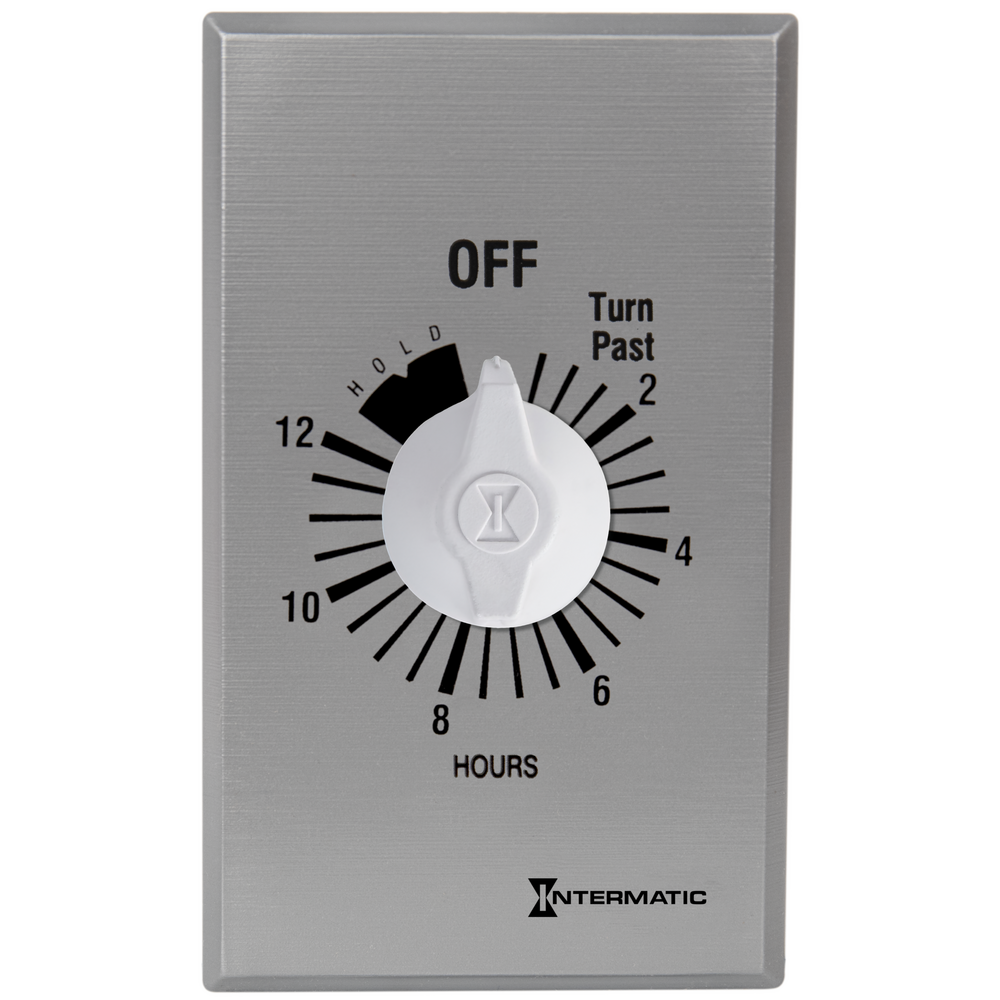

Intermatic FF12HHC, Spring Wound Countdown Timer, Commercial, 125-277V, 50/60 Hz, SPST, 12 Hour Max, With Hold, Silver
Regular price
$88.11
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- 12-Hour timer with hold.
- SPST (Single-Pole Single-Throw).
- Breaks circuit at end of timing cycle.
- No electricity required to operate.
- Replaces any standard or decorator single-gang wall switch.
- Automatically limits ON time for energy consuming loads.
- Quick and easy installation.
- Time-saving up front terminal connection with teeter-type terminals.
- Brushed metal look switch plate meets NEC requirements (plate is included).
-
Incandescent/fluorescent/CFL/LED compatible.
| Model Number | FF12HHC |
| Description | Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST,12 Hour Max, With Hold, Silver |
| Color | Silver |
| Operation Mode | Countdown |
| Countdown Time | 12 hrs |
| Hold Mode Included | Yes |
| Mechanism Type | Analog/Mechanical |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Wall Plate Configurations | Single-Gang; Multi-Gang |
| Includes Wall Plate | Yes |
| Finish | Brushed Metal |
| Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC |
| Tungsten Incandescent (NO) Range(s) | 7 A, 125 VAC, 875 W |
| Input Voltage Range(s) | 125-277 VAC, 50/60 Hz |
| Switch Type | SPST |
| Neutral Connection Required | No |
| Temperature (operation) | 40 - 120 °F / 4 - 49 °C |
| UL Certification | RU |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
