Intermatic GM40AVE-RD89, 24-Hour or 7-Day Electronic Time Control, Type 3R Outdoor Plastic Enclosure, 40A, 120-277V
Regular price
$238.03
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

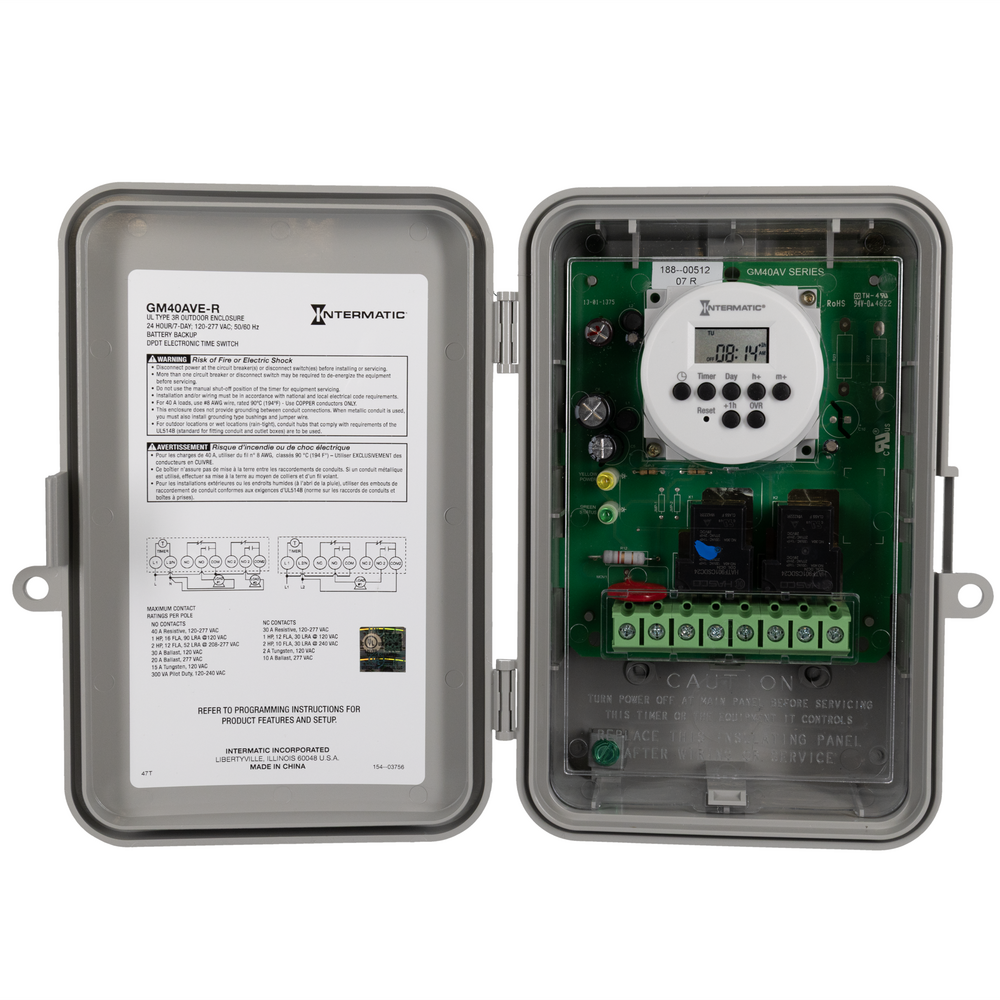

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
- Heavy-duty 40 A contact rating.
- Automatically adjusts voltages between 120-277 VAC.
- 24-Hour/7-day flexible scheduling.
- Power and status LED indicators.
- DPDT switching configuration (2 NO and 2 NC Contacts).
- 14 Setpoint programs.
- Manual override with load status indication.
- Self-recharging battery with back up protection up to 2500 hours.
- Type 3R outdoor enclosure with lockable hasp.
-
To-the-minute accuracy.
| Model Number | GM40AVE-RD89 |
| Description | 24-Hour or 7-Day 120-277V Electronic Time Control, 40A, NEMA 3R Indoor/Outdoor Plastic Enclosure |
| Color | Gray |
| Minimum ON/OFF Times | 1 min |
| Operation Mode | 24 hour; 7 day |
| Daylight Savings Adjustment | Manual |
| Backup Type | Battery |
| Backup Protection Time | 2500 Hours |
| Battery Service Type | Non-Replaceable |
| Has Manual Override Status Indication | Yes |
| Chemical Composition of the Battery Cell | Ni-MH |
| Enclosure Type | Outdoor type 3R plastic |
| Motor Load (NC) Range(s) | 1 HP, 12 FLA, 30 LRA @ 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA @ 240 VAC, 50/60 Hz |
| Motor Load (NO) Range(s) | 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC |
| Resistive (NO) Range(s) | 40 A, 120-277 VAC |
| Resistive (NC) Range(s) | 30 A, 120-277 VAC |
| Electronic Ballast (NO) Range(s) | 30 A, 120 VAC; 20 A, 277 VAC |
| Electronic Ballast (NC) Range(s) | 10 A, 277 VAC |
| Tungsten Incandescent (NC) Range(s) | 2 A, 120 VAC |
| Tungsten Incandescent (NO) Range(s) | 15 A, 120 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Screw box lug |
| Switch Type | DPDT |
| Electrical Life | 50,000 operations at full load |
| Temperature (operation) | -15 - 55 °C / 5 - 131 °F |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 1-Year limited |
