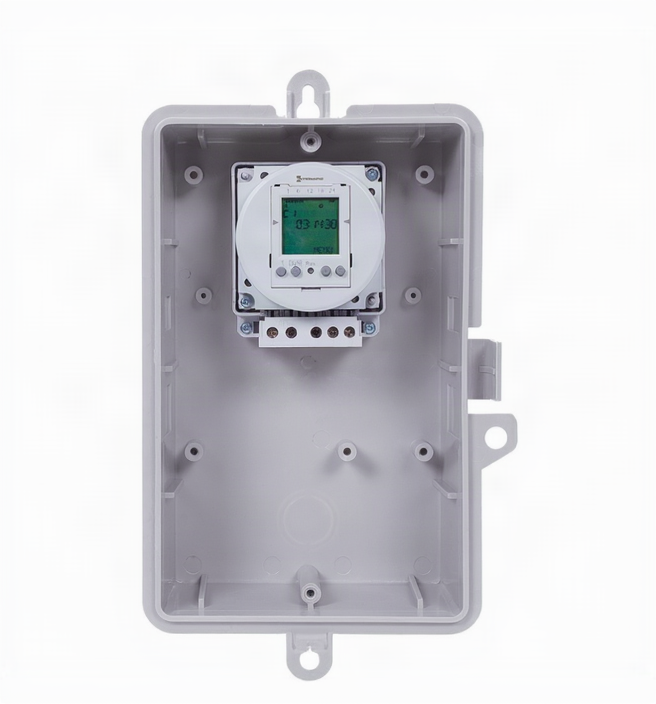

Intermatic GMXFM1D20-I-LV, 24-Hour or 7-Day Electronic Time Control, 20 Setpoint Programs, Type 1 Indoor Plastic Enclosure, SPDT, 15A, 12/24V
Regular price
$256.68
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Universal GMXFM Electronic Series Time Controls are a low-cost alternative for applications that do not require more than 15 A. The timer is mounted in a UL Type 1 indoor.
- 12-24 VDC & 24 VAC.
- 24-hour or 7-day applications.
- 20 set-point programs.
- Self-recharging battery with 2500-hours back-up.
- Cycle timer function.
- Manual Override.
- Type 1 enclosure, plastic.
-
15 A load control.
| Model Number | GMXFM1D20-I-LV |
| Description | 24-Hour or 7-Day 12/24V Electronic Time Control, 15A, 20 Setpoint Programs, SPDT, Type 1 Indoor Plastic Enclosure |
| Minimum ON/OFF Times | 1 min |
| Time Presets | Flexible |
| Operation Mode | 24 hour; 7 day |
| Daylight Savings Adjustment | Manual |
| Backup Type | Battery |
| Backup Protection Time | 2500 Hours |
| Battery Service Type | Non-Replaceable |
| Mechanism Type | Digital/Electrical |
| Chemical Composition of the Battery Cell | Ni-MH |
| Enclosure Type | Indoor type 1 plastic |
| Magnetic Ballast (NO) Range(s) | 8 A, 277 VAC |
| Magnetic Ballast (NC) Range(s) | 8 A, 120 VAC |
| Resistive (NO) Range(s) | 15 A, 277 VAC |
| Resistive (NC) Range(s) | 12 A, 24 VDC |
| Pilot Duty (NO) Range(s) | B300 |
| General Purpose (NC) Range(s) | 15 A, 277 VAC |
| General Purpose (NO) Range(s) | 15 A, 277 VAC |
| Electronic Ballast Load Ratings NO Ranges | 4.9 A, 120 VAC |
| Motor Load Ratings NO Ranges | 1/2 HP @ 120 VAC; 1 HP @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 600 W, 120 VAC; 1000 W, 240 VAC |
| Voltage Selection Type | Voltage Specific |
| Wiring Option | Screw box lug |
| Switch Type | SPDT |
| Maximum Power Consumption (W) | 1.4 W |
| Amperage | 15 A |
| Operating Humidity | 0-95% RH, Non-condensing |
| Temperature (operation) | 5 °F to 131 °F / (-15 °C to 55 °C) |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 1-Year limited |
