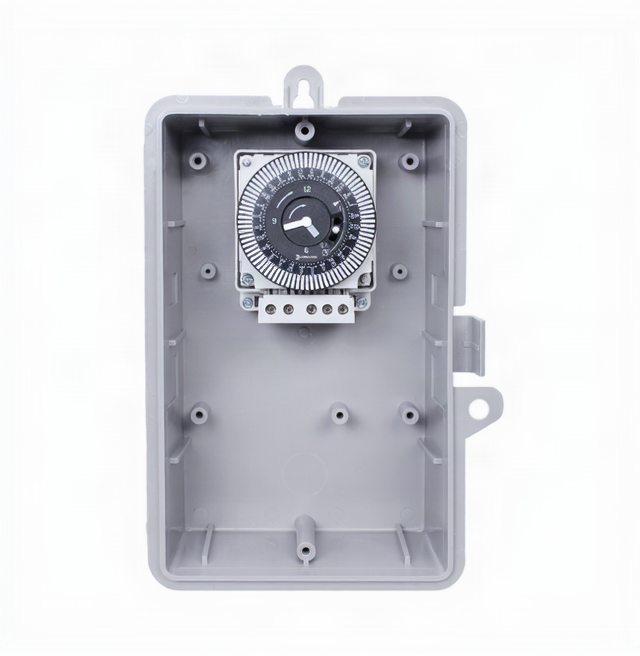

Intermatic GMXSW-I-120, 7-Day Electromechanical Timer, 2 Hour Intervals, Type 1 Indoor Plastic Enclosure, SPDT, 21A, 120V
Regular price
$190.94
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The GMX series time switches are universal mechanical time switches. They are a low cost alternative for applications that do not require more than 21 A or 2 HP @ 240 VAC. The timer is mounted in a UL Type 1 indoor or Type 3R outdoor plastic enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120 or 208/240 VAC single-phase general applications.
- 21 A SPDT Switch.
- UL Type 1 indoor or Type 3R outdoor plastic enclosure.
- Manual 3-way override.
- Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models.
- True clock face, easy to set.
- Finger-safe terminals.
-
Enclosure provides space for field-added contactor or other accessories.
| Model Number | GMXSW-I-120 |
| Description | 7-Day 120V Electromechanical Timer, 2 Hour Intervals, 21A, SPDT, Type 1 Indoor Plastic Enclosure |
| Maximum Cycle Time | 7 days |
| Timing Interval | 2 hrs |
| Clock Drive Type | Synchronous |
| Mechanism Type | Electromechanical |
| Application Compatibilities | CFL; Fluorescent; Incandescent |
| Mounting Options | Wall |
| Enclosure Type | Indoor type 1 plastic |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 250 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1350 W, 120 VAC |
| Wiring Option | Screw terminal accepts up to #12 AWG wire |
| Switch Type | SPDT |
| Shortest switching time | ON/OFF 2 hours |
| Operating Humidity | 0 to 95%, Non-condensing |
| Temperature (operation) | -40 °F to 185 °F / (-40 °C to 85 °C) |
| UL Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
