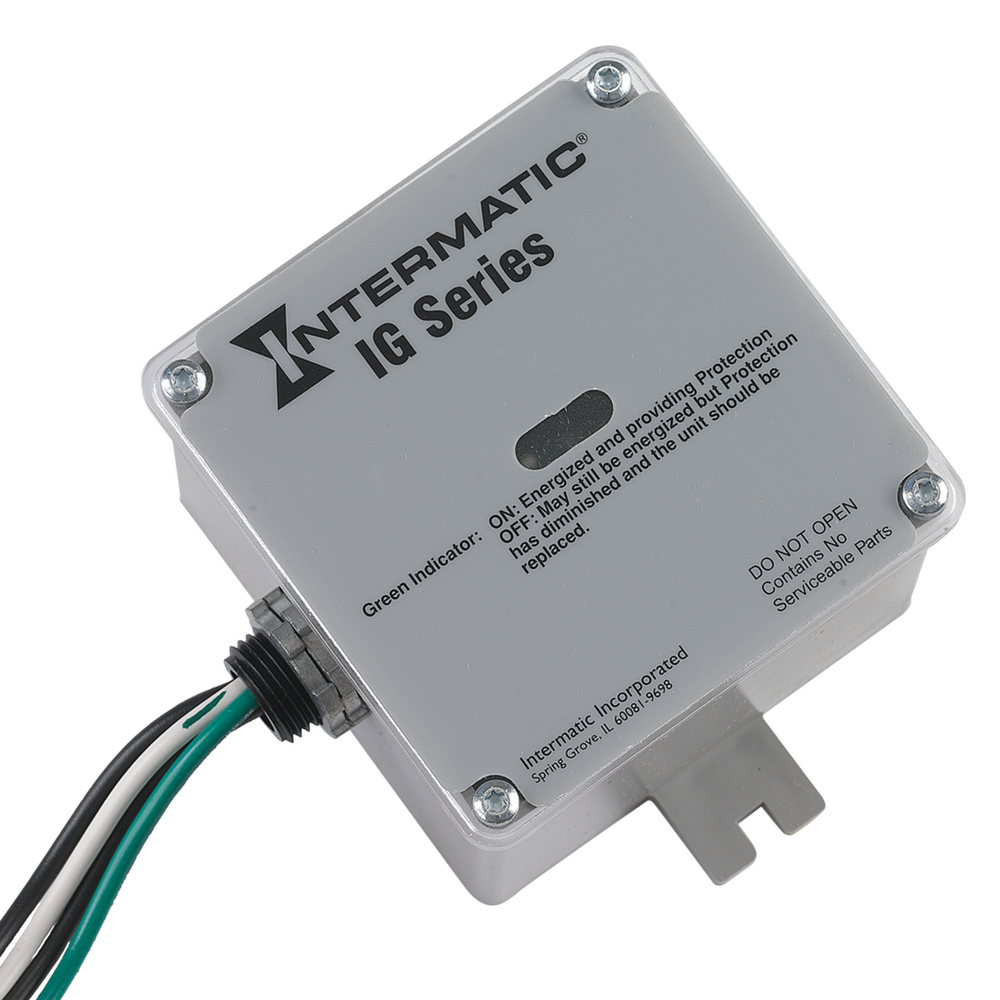

Intermatic IG1240RC3, Surge Protective Device, Single (Split) Phase, 6-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor type 3R plastic, Gray
Regular price
$298.13
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The IG Series Surge Protective Devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449, 5th Edition.
- Six modes of surge protection.
- TPMOV® surge protection technology.
- Green LED indicator provides status of protection.
- Type 3R rainproof enclosure for indoor/outdoor applications in plastic.
- 5-year product warranty.
- $10,000 connected equipment warranty on appliances and electronics.
-
UL certified to ANSI/UL 1449 5th edition.
| Model Number | IG1240RC3 |
| Description | Surge Protective Device, 6-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor Plastic, Connected Equipment Warranty 5 yr $10,000 |
| Color | Gray |
| Warranty Period | 5-Year limited |
| Modes of Protection | 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2) |
| Short Circuit Current Rating | 100 kA |
| Nominal Discharge Current | 20 kA |
| Maximum Surge Current Rating Per Phase | 50 kA |
| Surge Protection Technology | TPMOV® |
| Maximum Continuous Operating Voltage (L-G) | 300 |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| Maximum Continuous Operating Voltage (L-N) | 150 |
| Maximum Continuous Operating Voltage (N-G) | 150 |
| Voltage Protection Rating (L-G) | 1200 |
| Voltage Protection Rating (L-L) | 1200 |
| Voltage Protection Rating (L-N) | 700 |
| Voltage Protection Rating (N-G) | 700 |
| Phase | Single |
| Voltage | 120/240 VAC Single-Phase |
| Surge Protection Type | 1; 2 |
| Surge Protection LED Indicator | Green |
| Number of Wire Leads | 4 |
| Enclosure Type | Outdoor type 3R plastic |
| Temperature (operation) | -31 °F to 185 °F / (-35 °C to 85 °C) |
| CSA Certification | cCSAus SPD Type 1; cCSAus SPD Type 2 |
| RoHS Certification | N/A |
