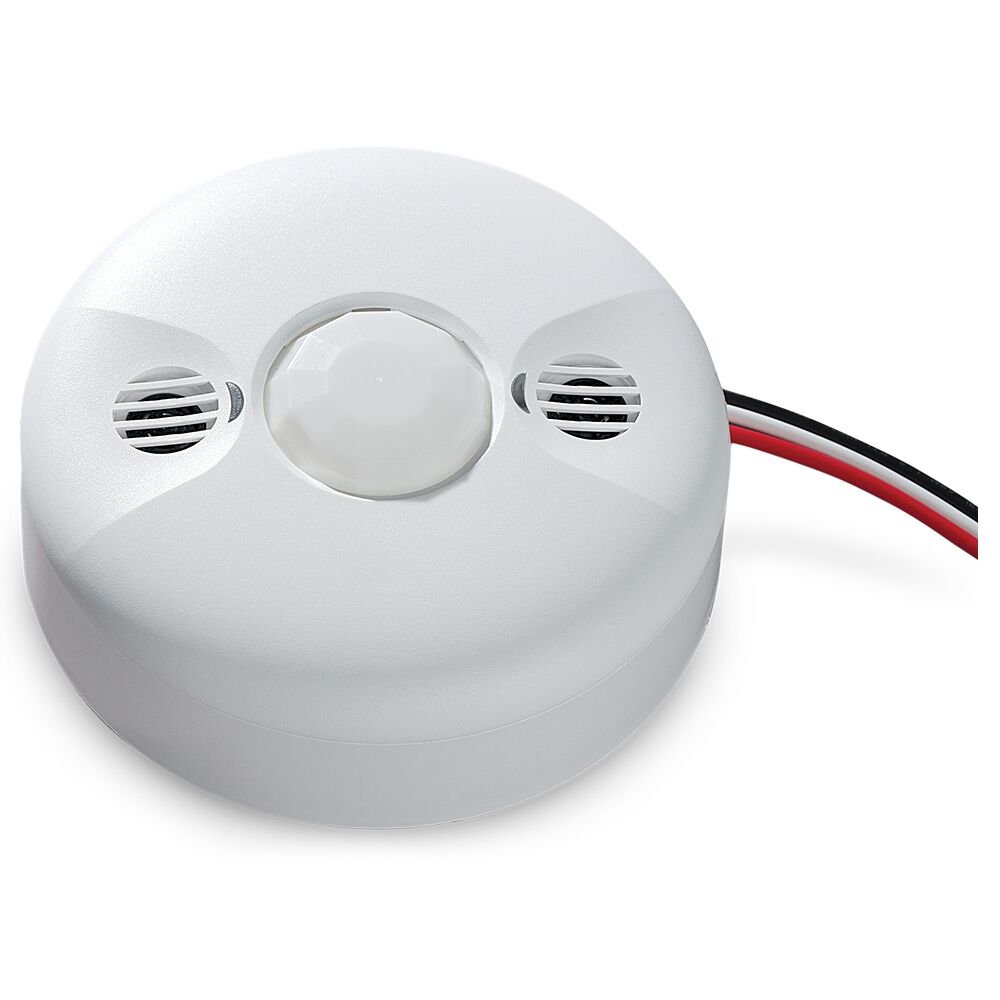

Intermatic IOS-CMP-DT-U, Commercial Grade Line Voltage Ceiling Mount Dual Tech Occupancy Sensor, White
Regular price
$247.97
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The IOS-CMP-DT-U Dual Technology Line Voltage Occupancy Sensors control loads based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1600 ft2 (150m2) for PIR and 1000 ft2 (93m2) for Ultrasonic sensor.
- Ultrasonic and PIR sensing improves presence detection while avoiding false triggers, even in areas with partitions and/or small movements.
- Zero-crossing technology for long life and performance.
- Coverage: 360°, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling.
- Adjustable ambient light sensor override.
- Requires neutral connection.
-
Incandescent/Fluorescent/CFL/LED compatible.
| Model Number | IOS-CMP-DT-U |
| Description | Commercial Grade Line Voltage Ceiling Mount Dual Tech Occupancy Sensor, White |
| Color | White |
| Warranty Period | 2-Year limited |
| Sensor Switch Type | Occupancy |
| Sensor Technology | Zero-crossing, Dual (PIR/Ultrasonic) |
| PIR Coverage Area (sq ft) | 1600 |
| Adjustable Ambient Light Level Detection | 10 fc to daylight |
| Adjustable Time Delay | 5 sec to 30 min |
| PIR Lens 2 Coverage Pattern (degrees) | 360 |
| Maximum Mounting Height (ft) | 8-11 ft |
| Mount Type | Ceiling |
| Includes Wall Plate | Yes |
| Finish | Gloss |
| Resistive Heater | 800 W |
| Input Voltage Range(s) | 120/277 VAC, 50/60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Material | Polymer |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| RoHS Certification | N/A |
