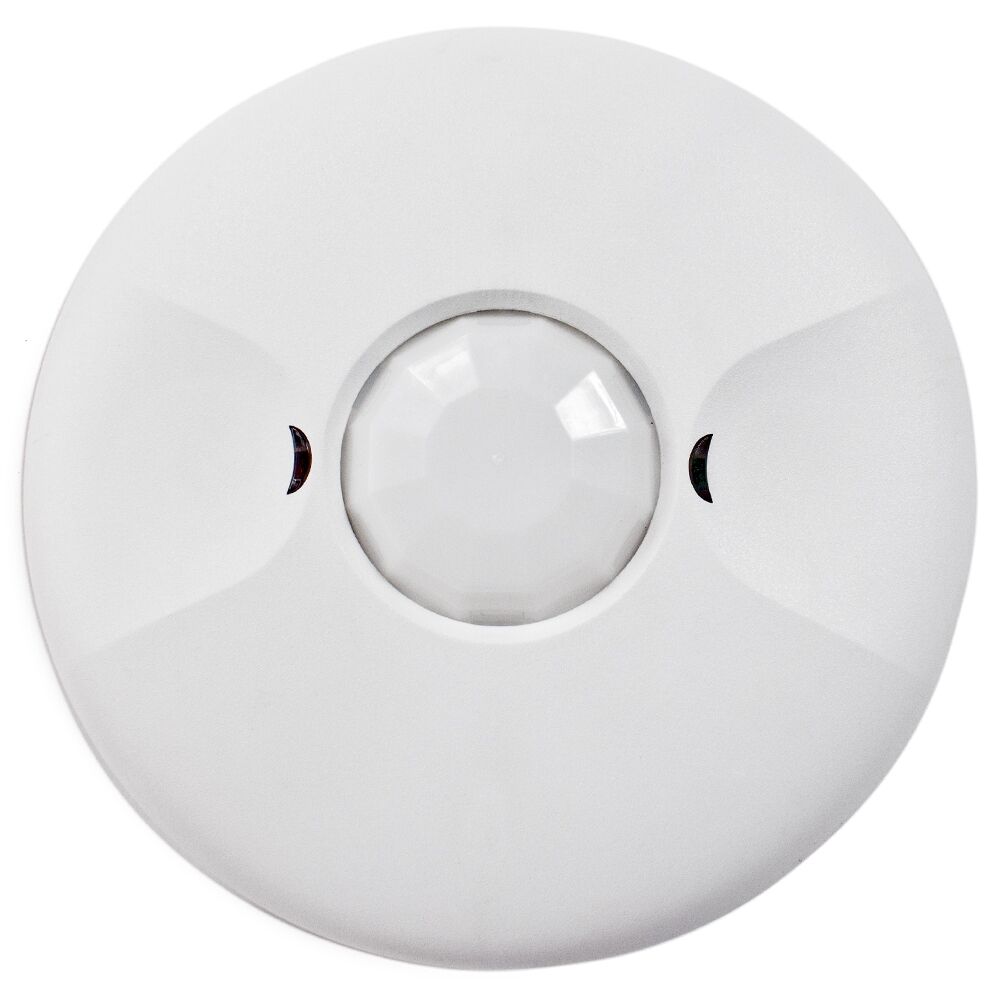

Intermatic IOS-CMP-LV, Commercial Grade Low-Voltage Ceiling Mount PIR Occupancy/Vacancy Sensor, White
Regular price
$115.97
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The IOS-CMP-LV 360° Passive Infrared (PIR) Low Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified or Autoset time of 15 seconds to 30 minutes, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
- Fresnel lens with 360° field of view, 1200 sq.ft.
- Adjustable ambient light level detection.
- Optional Walk-through mode for increased energy savings.
- PIR sensing for presence detection.
- Low-voltage, remote-mounted sensor.
- Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling.
- Adjustable time delay.
-
Powered by IOS-PP24 power pack, sold separately.
| Model Number | IOS-CMP-LV |
| Description | Commercial Grade Low-Voltage Ceiling Mount PIR Occupancy/Vacancy Sensor, White |
| Color | White |
| Warranty Period | 2-Year limited |
| Sensor Switch Type | Low-Voltage, Occupancy, Vacancy |
| Sensor Technology | PIR (Passive Infrared) |
| PIR Coverage Area (sq ft) | 1600 |
| Adjustable Ambient Light Level Detection | 10 fc to daylight |
| Adjustable Time Delay | 5 sec to 30 min |
| PIR Lens 2 Coverage Pattern (degrees) | 360 |
| Maximum Mounting Height (ft) | 8-11 ft |
| Mount Type | Ceiling |
| Includes Wall Plate | Yes |
| Finish | Gloss |
| Resistive Heater | Please see IOS-PP24 |
| Input Voltage Range(s) | 24 VDC |
| Occupancy Sensor Power Type | Low Voltage |
| Material | Polymer |
| Temperature (operation) | 32 - 122°F / 0 - 50°C |
| RoHS Certification | N/A |
