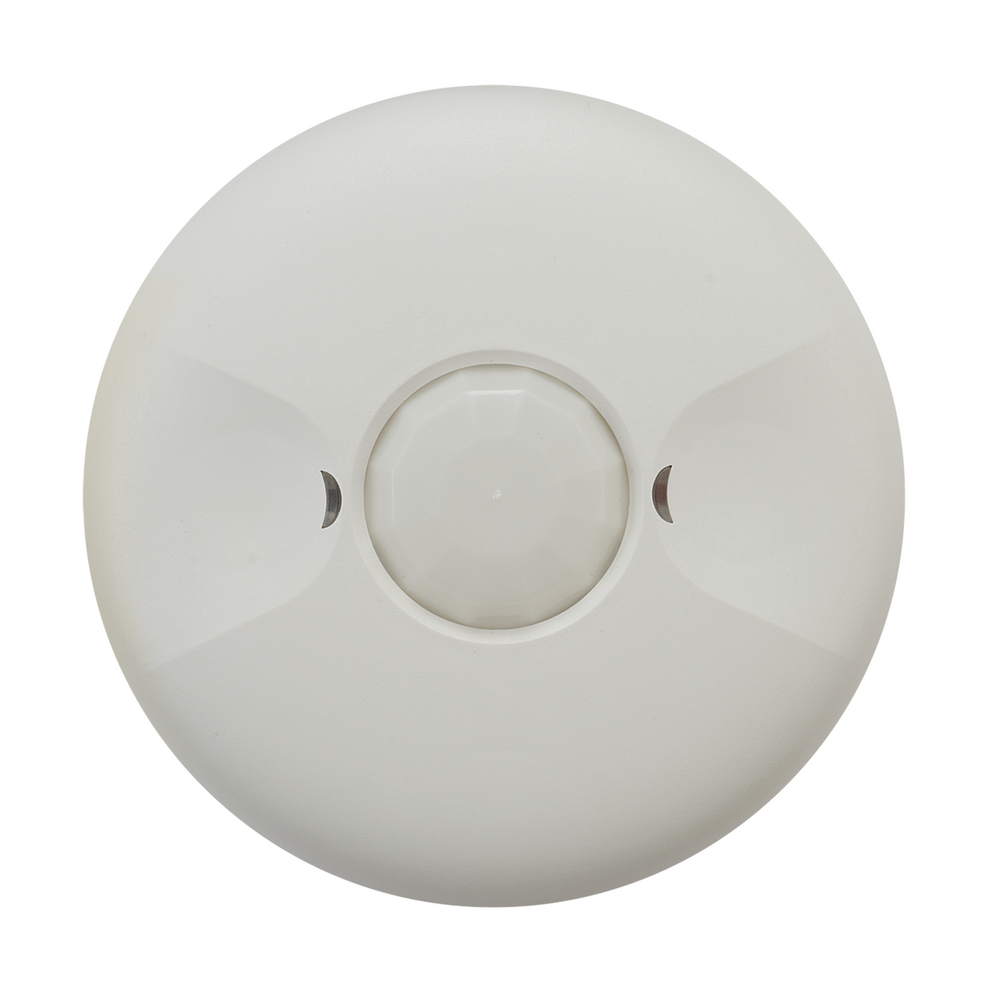

Intermatic IOS-CMP-U, Commercial Grade Line Voltage Ceiling Mount PIR Occupancy Sensor, White
Regular price
$135.27
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
- PIR technology sensing for presence detection.
- Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling.
- Zero-crossing technology for long life and performance.
- Adjustable ambient light sensor override.
- Requires neutral connection.
-
Incandescent/Fluorescent/CFL/LED compatible.
| Model Number | IOS-CMP-U |
| Description | Commercial Grade Line Voltage Ceiling Mount PIR Occupancy Sensor, White |
| Color | White |
| Warranty Period | 2-Year limited |
| Sensor Switch Type | Occupancy |
| Sensor Technology | PIR (Passive Infrared); Zero-crossing |
| PIR Coverage Area (sq ft) | 1200 |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Adjustable Ambient Light Level Detection | 10 fc to 150 fc |
| Adjustable Time Delay | 15 sec to 30 min |
| PIR Lens 2 Coverage Pattern (degrees) | 360 |
| Maximum Mounting Height (ft) | 8-11 ft |
| Mount Type | Ceiling |
| Includes Wall Plate | Yes |
| Finish | Gloss |
| Electronic Ballast LED | 800 VA, 120/125 VAC; 1600 VA, 277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 800 W, 120/125 VAC |
| Input Voltage Range(s) | 120/277 VAC, 60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Neutral Connection Required | Yes |
| Watts | 800 |
| Hz | 60 |
| Amperage | 10 A |
| Material | Polymer |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| RoHS Certification | N/A |
