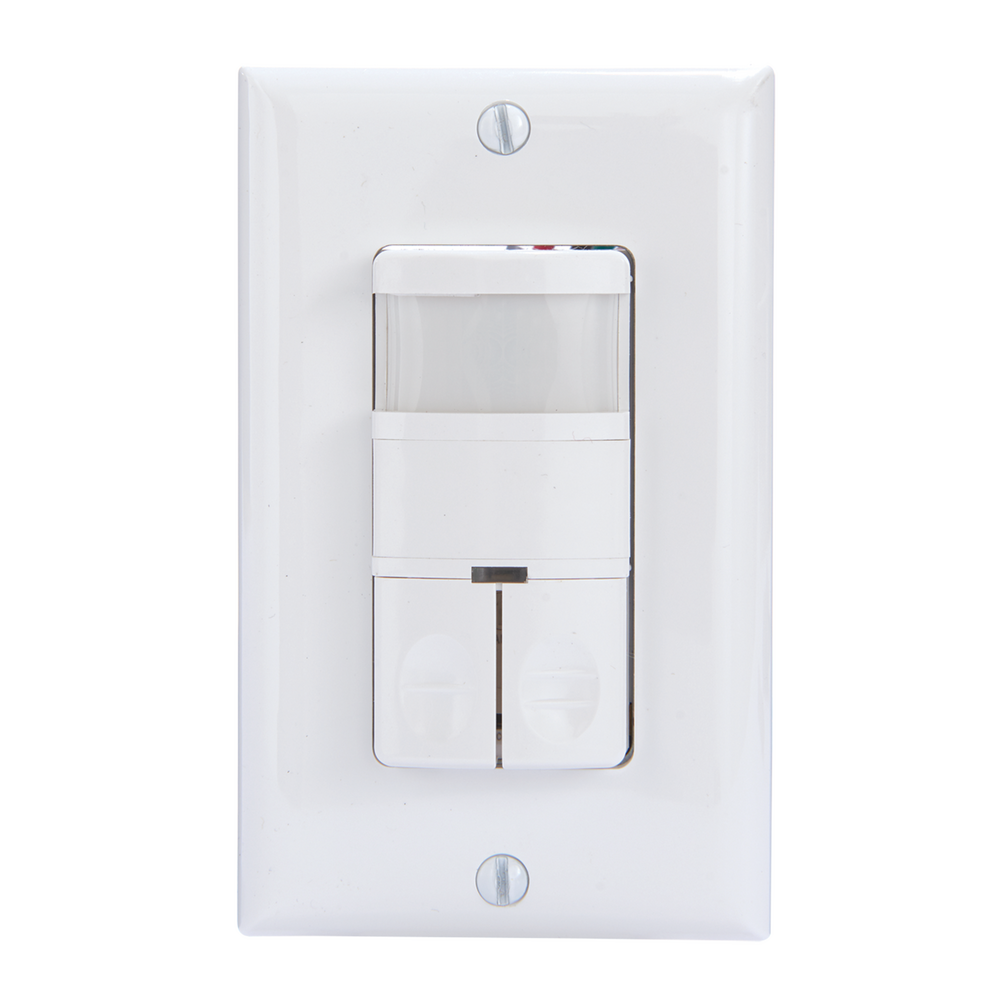

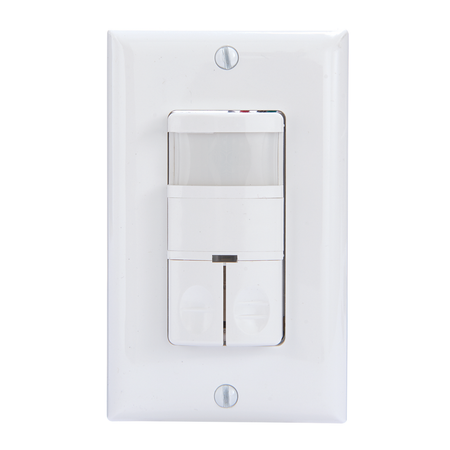

Intermatic IOS-DDR-WH, Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor, No Neutral Required, White
Regular price
$142.07
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The IOS-DDR has two relays (equal to Dual Load Switch).
- Passive Infrared (PIR) sensing for presence detection.
- Coverage: 180º, 1200 ft2 with non-obstructed views.
- Independent load control for each circuit.
- Zero-crossing technology for long life and performance.
- Incandescent/Fluorescent/CFL/LED compatible.
- IOS-DDR-WH does NOT require a neutral.
- Fits standard decorator wall plate (included).
- Time delay OFF ranging from 15 seconds to 30 minutes.
- Two ON/OFF push buttons allow control of two loads independently.
-
Multiple configurations (e.g. auto ON-manual ON, auto ON-auto ON) for primary and secondary loads.
| Model Number | IOS-DDR-WH |
| Description | Commercial Grade Dual Load In-Wall PIR Occupancy/Vacancy Sensor, No Neutral Required, White |
| Color | White |
| Warranty Period | 5-Year limited |
| Sensor Switch Type | Occupancy, Vacancy |
| Sensor Technology | PIR (Passive Infrared), Zero-crossing |
| PIR Coverage Area (sq ft) | 1200 |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Adjustable Ambient Light Level Detection | 30 lux to daylight |
| Adjustable Time Delay | 15 sec to 30 min |
| PIR Lens 2 Coverage Pattern (degrees) | 180 |
| Maximum Mounting Height (ft) | 4 ft |
| Mount Type | In-Wall |
| Includes Wall Plate | Yes |
| Finish | Gloss |
| Electronic Ballast LED | 800 VA, 120/125 VAC; 1600 VA, 277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 800 W, 120/125 VAC |
| Input Voltage Range(s) | 120/277 VAC, 60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Watts | 800 |
| Material | Polymer |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| RoHS Certification | N/A |
