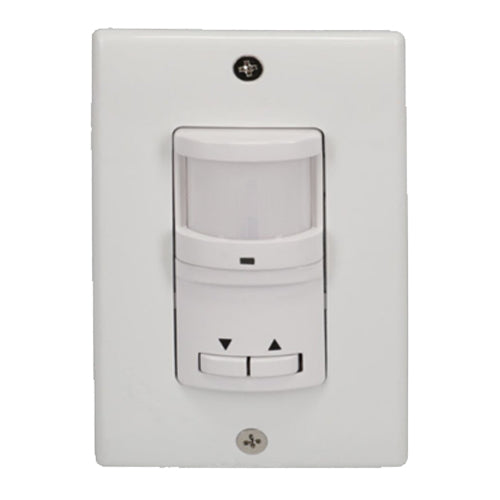

Intermatic IOS-DOV-D-WH, Commercial Grade In-Wall 0-10 V Dimming PIR Occupancy/Vacancy Sensor, White

In stock
SKU: IOS-DOV-D-WH
$241.54
Rated voltage
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Intermatic’s IOS-DOV-D-WH PIR technology 0-10 V dimming occupancy sensor can turn lights ON and OFF based on occupancy and allow the user to increase or decrease the lighting level.

  • Passive Infrared (PIR) sensing for presence detection.
  • Coverage: 180º, up to 35 ft PIR.
  • Adjustable time delay.
  • Adjustable initial on light level.
  • Adjustable low trim level.
  • Adjustable high trim level.
Model Number IOS-DOV-D-WH
Description Commercial Grade In-Wall 0-10 V Dimming PIR Occupancy/Vacancy Sensor, White
Color White
Warranty Period 5-Year limited
Sensor Switch Type  Occupancy; Vacancy
Sensor Technology  0 -10 Volt Dimming; PIR (Passive Infrared)
Adjustable Time Delay Min 30 sec
Adjustable Time Delay Max 30 min
Adjustable Light Level Max Daylight
Has Walk-Through Detection Yes
PIR Coverage Area (sq ft) 1120
Application Compatibilities LED; Tungsten; Standard Ballast
Mount Type  In-Wall
PIR Coverage Pattern (degrees) 35
Includes Wall Plate Yes
Tungsten Range(s)  1000 W, 120 VAC; 1385 W, 277 VAC
Resistive Load Ratings Ranges 10 A, 125/250/277 VAC
Motor Load Ratings Ranges  1/6 HP, 120/240 VAC
Electronic Ballast Load Ratings Ranges 600 VA, 120 VAC; 1385 W, 277 VAC
Input Voltage Range(s)  120/277 VAC, 50/60 Hz
Occupancy Sensor Power Type Line Voltage
Number of Circuits 1
Neutral Connection Required  Yes
Temperature (operation) 32 - 131°F / 0 - 55°C
RoHS Certification N/A
