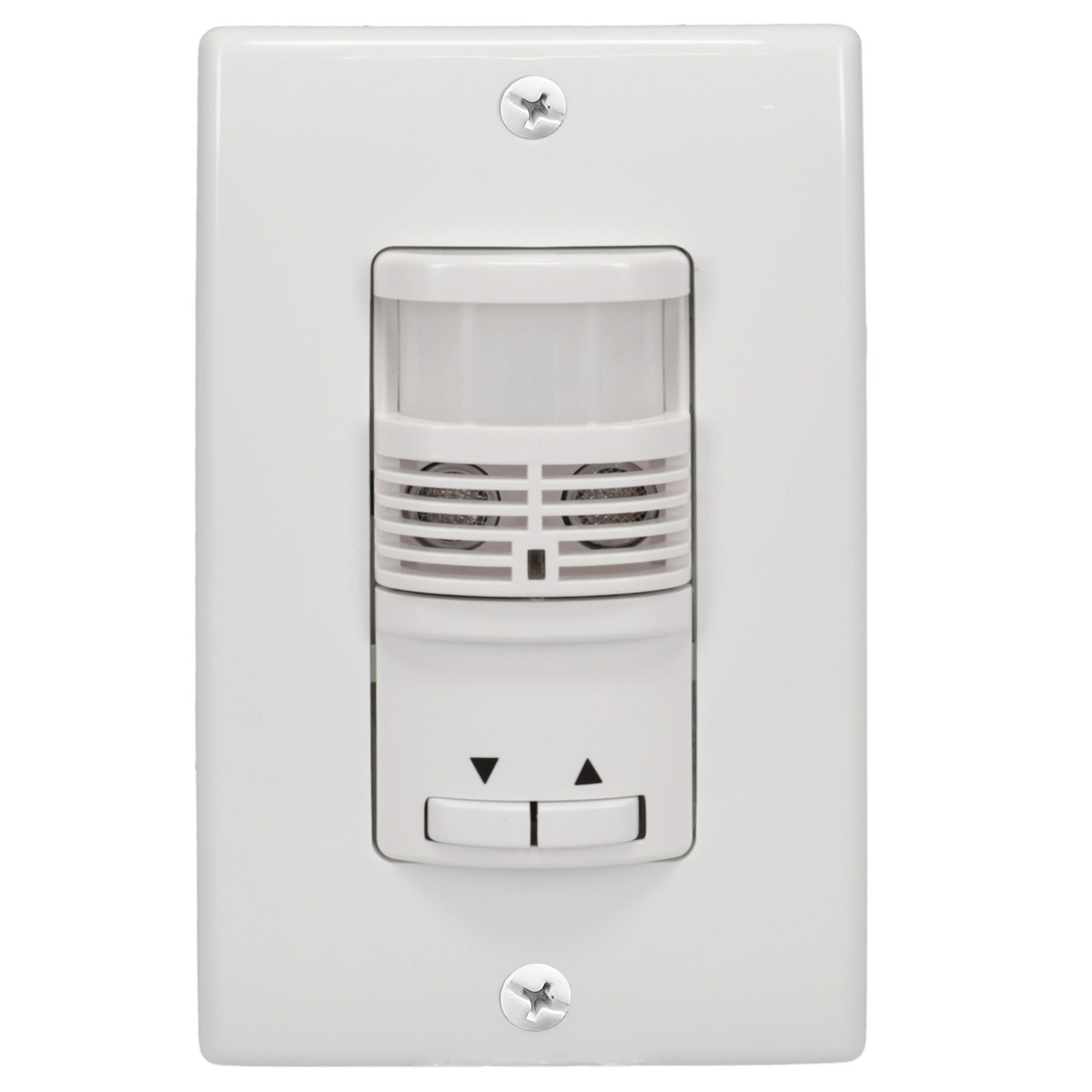

Intermatic IOS-DOV-DTD-WH, Commercial Grade In-Wall 0-10 V Dimming Dual Tech Occupancy/Vacancy Sensor, White
Regular price
$354.24
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Intermatic’s IOS-DOV-DTD-WH dual technology 0-10 V dimming occupancy sensor can turn lights ON and OFF based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies.
- Ultrasonic and Passive Infrared (PIR) sensing for presence detection, even in areas with partitions and/or with small movements.
- Coverage: 180º, up to 35 ft PIR, up to 27 ft Ultrasonic.
- Adjustable time delay.
- Adjustable initial on light level.
- Adjustable low trim level.
-
Adjustable high trim level.
| Model Number | IOS-DOV-DTD-WH |
| Description | Commercial Grade In-Wall 0-10 V Dimming Dual Tech Occupancy/Vacancy Sensor, White |
| Color | White |
| Warranty Period | 5-Year limited |
| Sensor Switch Type | Occupancy; Vacancy |
| Sensor Technology | 0 -10 Volt Dimming; Dual Technology (PIR/Ultrasonic) |
| Adjustable Time Delay Min | 30 sec |
| Adjustable Time Delay Max | 30 min |
| Adjustable Light Level Max | Daylight |
| Has Walk-Through Detection | Yes |
| PIR Coverage Area (sq ft) | 1120 |
| Ultrasonic Coverage Area (sq ft) | 729 |
| Application Compatibilities | LED; Tungsten; Standard Ballast |
| Mount Type | In-Wall |
| Includes Wall Plate | Yes |
| Tungsten Range(s) | 1000 W, 120 VAC; 1385 W, 277 VAC |
| Resistive Load Ratings Ranges | 10 A, 125/250/277 VAC |
| Motor Load Ratings Ranges | 1/6 HP, 120/240 VAC |
| Electronic Ballast Load Ratings Ranges | 600 VA, 120 VAC; 1385 W, 277 VAC |
| Input Voltage Range(s) | 120/277 VAC, 50/60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Number of Circuits | 1 |
| Neutral Connection Required | Yes |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| UL Certification | cULus |
| RoHS Certification | N/A |
