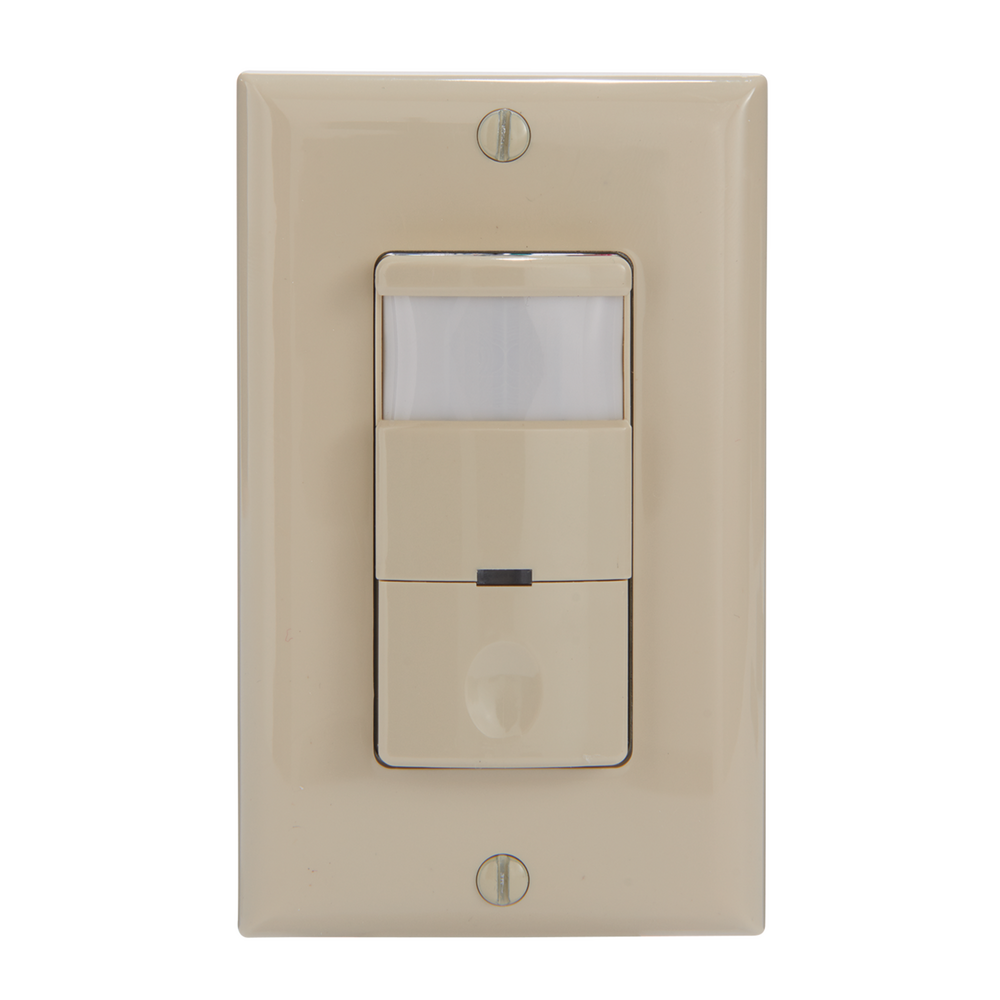

Intermatic IOS-DOV-IV, Commercial Grade In-Wall PIR Occupancy/Vacancy Sensor, Ivory
Regular price
$65.39
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
- Passive Infrared (PIR) sensing for presence detection.
- Coverage: 180º, 1200 ft2 with non-obstructed views.
- User-selectable Vacancy or Occupancy switch mode.
- Zero-crossing technology for long life and performance.
- Adjustable ambient light sensor override.
- Incandescent/Fluorescent/CFL compatible.
- IOS-DOV models require a neutral connection.
- Fits standard decorator wall plate (included).
- Automatic ON/OFF Control.
-
Push button ON/OFF.
| Model Number | IOS-DOV-IV |
| Description | Commercial Grade In-Wall PIR Occupancy/Vacancy Sensor, Ivory |
| Color | Ivory |
| Warranty Period | 5-Year limited |
| Sensor Switch Type | Occupancy; Vacancy |
| Sensor Technology | PIR (Passive Infrared); Zero-crossing |
| PIR Coverage Area (sq ft) | 1200 |
| Application Compatibilities | Incandescent; Fluorescent; CFL |
| Adjustable Ambient Light Level Detection | 30 lux to daylight |
| Adjustable Time Delay | 15 sec to 30 min |
| Adjustable Sensitivity Settings | 30%-100% |
| PIR Coverage Pattern (degrees) | 180 |
| Maximum Mounting Height (ft) | 4 ft |
| Mount Type | In-Wall |
| Includes Wall Plate | Yes |
| Finish | Gloss |
| Magnetic Ballast (NO) Range(s) | 800 VA |
| Tungsten Incandescent (NO) Range(s) | 800 W, 120 VAC |
| Input Voltage Range(s) | 120/125 VAC, 60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Number of Circuits | 1 |
| Neutral Connection Required | Yes |
| Watts | 800 |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| UL Certification | cULus |
| RoHS Certification | N/A |
