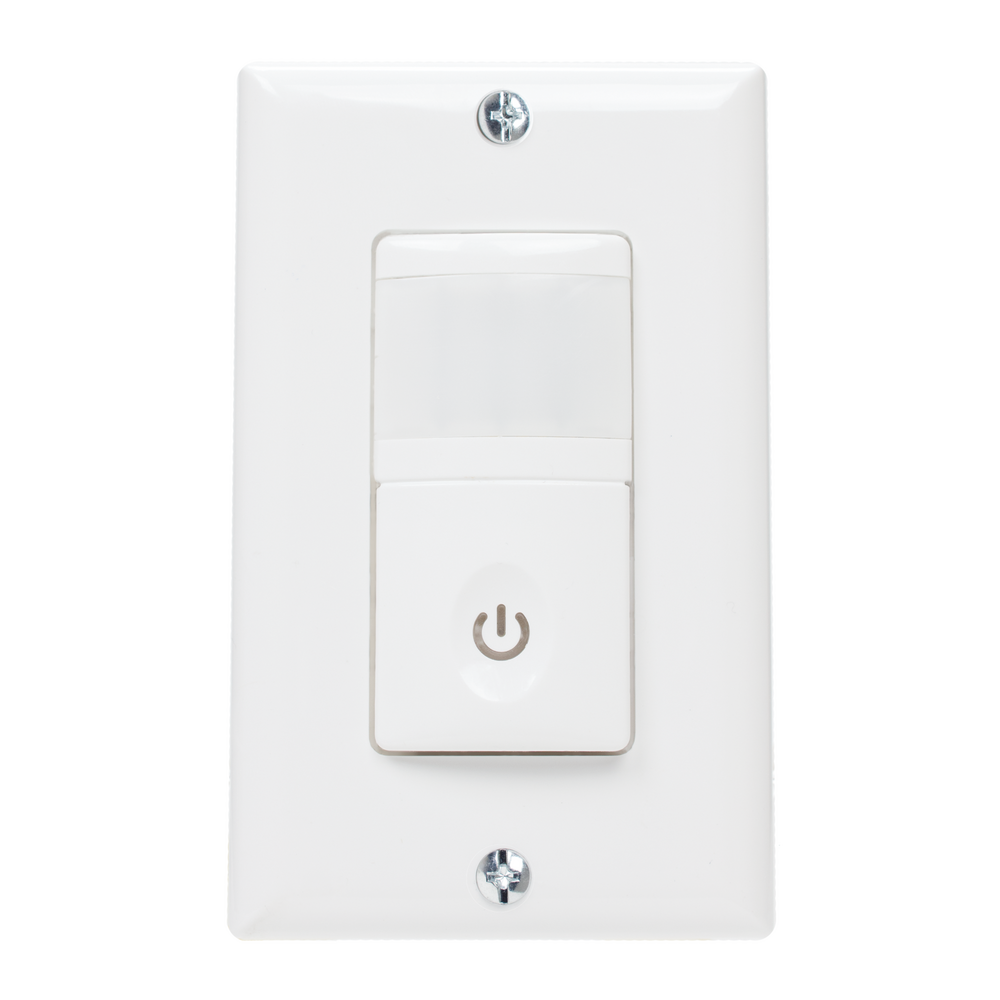

Intermatic IOS-DPBV-WH, Residential In-Wall PIR Vacancy Sensor, White
Regular price
$54.11
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. Once the sensor switch is manually turned ON, it can turn a load ON and hold it as long as the sensor detects any motion. After no motion is detected for the set time delay, the load is turned OFF automatically. The sensor switch has one relay (equal to single pole switch); no minimum load requirements.
- Passive Infrared (PIR) sensing for presence detection.
- Adjustable PIR sensitivity.
- Adjustable time delay 15 sec to 30 min.
- Adjustable ambient light sensor override for occupancy switch models.
- Coverage: 180º, 700 ft2 with non-obstructed views.
- IOS-DPBIF and IOS-DPBV models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection.
- 'No neutral' models offered for retrofit applications.
- Fits standard decorator wall plate (included).
- Automatic OFF after time delay expires with manual “OFF” option.
-
Meets California Title 20 Requirements.
| Model Number | IOS-DPBV-WH |
| Description | Residential In-Wall PIR Vacancy Sensor, White |
| Color | White |
| Warranty Period | 2-Year limited |
| Sensor Switch Type | Vacancy |
| Sensor Technology | PIR (Passive Infrared); Zero-crossing |
| Adjustable Time Delay Min | 15 sec |
| Adjustable Time Delay Max | 20 min |
| Adjustable Light Level Min | 25 fc |
| Adjustable Light Level Max | Daylight |
| PIR Coverage Area (sq ft) | 980 |
| Application Compatibilities | CFL; Fluorescent; Incandescent |
| Mount Type | In-Wall |
| PIR Coverage Pattern (degrees) | 180 |
| Maximum Mounting Height (ft) |
4 ft |
| Includes Wall Plate | Yes |
| Tungsten Range(s) | 800 W |
| Resistive Load Ratings Ranges | 5 A |
| Motor Load Ratings Ranges | 1/4 HP |
| Electronic Ballast Load Ratings Ranges | 800 VA |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Neutral Connection Required | Yes |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| UL Certification | cULus |
| RoHS Certification | N/A |
