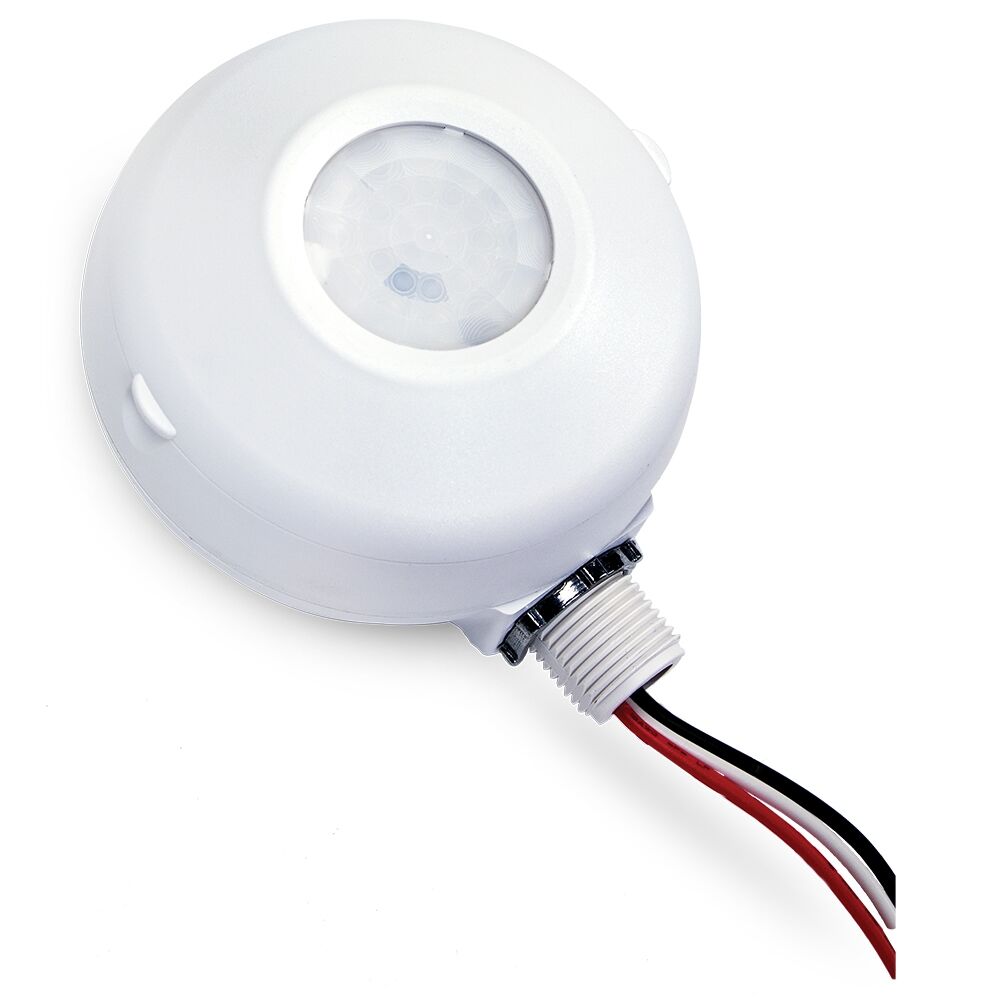

Intermatic IOS-HB-U, Commercial Grade High Bay Ceiling Mount PIR Occupancy Sensor, White
Regular price
$135.27
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The IOS-HB-U occupancy sensor is designed for automatic lighting control in high bay applications, such as warehouses, distribution centers, gymnasiums, and areas with direct access to the lighting fixtures, specifically for indoor locations. This product contains a passive infrared sensor (PIR) and is made up of two parts: a control module and a lens.
- Passive Infrared (PIR) sensing for presence detection.
- Two lenses included.
- Coverage: 1200 ft2 (Lens 1) or 2800 ft2 (Lens 2) when mounted at 15 to 50 ft.
- Zero-crossing technology for long life and performance.
- Adjustable ambient light sensor override.
-
Incandescent/Fluorescent/CFL/LED compatible.
| Model Number | IOS-HB-U |
| Description | Commercial Grade High Bay Ceiling Mount PIR Occupancy Sensor, White |
| Color | White |
| Warranty Period | 2-Year limited |
| Sensor Switch Type | Occupancy |
| Sensor Technology | PIR (Passive Infrared); Zero-crossing |
| Adjustable Time Delay Min | 15 sec |
| Adjustable Time Delay Max | 30 min |
| Adjustable Light Level Min | 10 fc |
| Adjustable Light Level Max | 150 fc |
| PIR Coverage Area (sq ft) | 1200 (Lens 1), 2800 (Lens 2) |
| Mount Type | Ceiling; Fixture |
| PIR Coverage Pattern (degrees) | 360 |
| PIR Lens 2 Coverage Pattern (degrees) | 360 |
| Maximum Mounting Height (ft) |
15-50 ft |
| Electronic Ballast LED | 800 VA, 120 VAC; 1200 VA, 277 VAC |
| Resistive Load Ratings Ranges | 10 A, 120 VAC |
| Motor Load Ratings Ranges | 1/4 HP, 120 VAC |
| Tungsten (Incandescent) Range(s) | 800 W, 120 VAC |
| Resistive Heater | 800 W |
| Input Voltage Range(s) | 120/277 VAC, 60 Hz |
| Occupancy Sensor Power Type | Line Voltage |
| Temperature (operation) | 32 - 131°F / 0 - 55°C |
| UL Certification | cULus |
| RoHS Certification | N/A |
