Intermatic IOS-PP25, Commercial Grade Low-Voltage Power Pack Auto/Manual
Regular price
$144.92
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

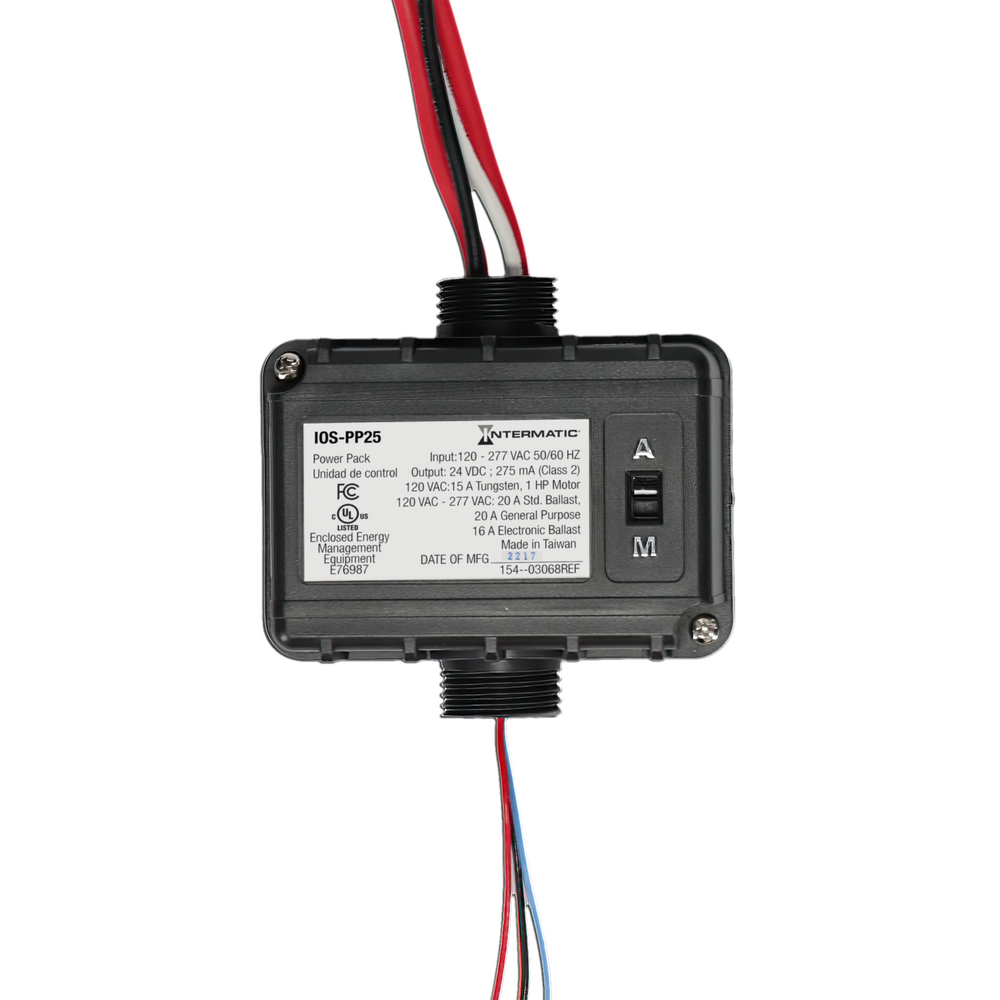

IOS-PP25 is a power pack with a 120 to 277 VAC, 50/60 Hz line voltage input. The power pack contains a full wave rectifier which can convert AC line voltage to 24 VDC to supply sensors with class 2 low voltage. Also, the power pack provides single-pole, single-throw, relay outputs to the load. The power pack is easily mounted either inside or outside of an electrical junction box. Wall plate not included.
- Can control multiple 24V sensors up to 275mA DC.
- Auto (occupancy)/manual (vacancy) toggle switch.
- 24V/275 mA DC power output.
- Single-pole and normally open relay.
- Overcurrent protection.
-
Relay contact protection.
| Model Number | IOS-PP25 |
| Description | Commercial Grade Low-Voltage Power Pack Auto/Manual |
| Color | Black |
| Warranty Period | 2-Year limited |
| PIR Coverage Area (sq ft) | Depends on sensor being used |
| Application Compatibilities | Tungsten; Electronic Ballast; General Purpose; Standard Ballast |
| Maximum Mounting Height (ft) | No maximum mounting height |
| Tungsten Range(s) | 15 A, 120 VAC |
| Motor Load Ratings Ranges |
1 HP, 120 VAC |
| Electronic Ballast Load Ratings Ranges | 16 A |
| General Purpose (NO) Range(s) | 20 A |
| Standard Ballast Ranges | 20 A |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Occupancy Sensor Power Type | Low Voltage |
| Power Supply Output | Auto (Occupancy)/Manual (Vacancy) toggle switch |
| Temperature (operation) | 32 - 104°F / 0 - 40°C |
| UL Certification | cULus |
| RoHS Certification | N/A |
