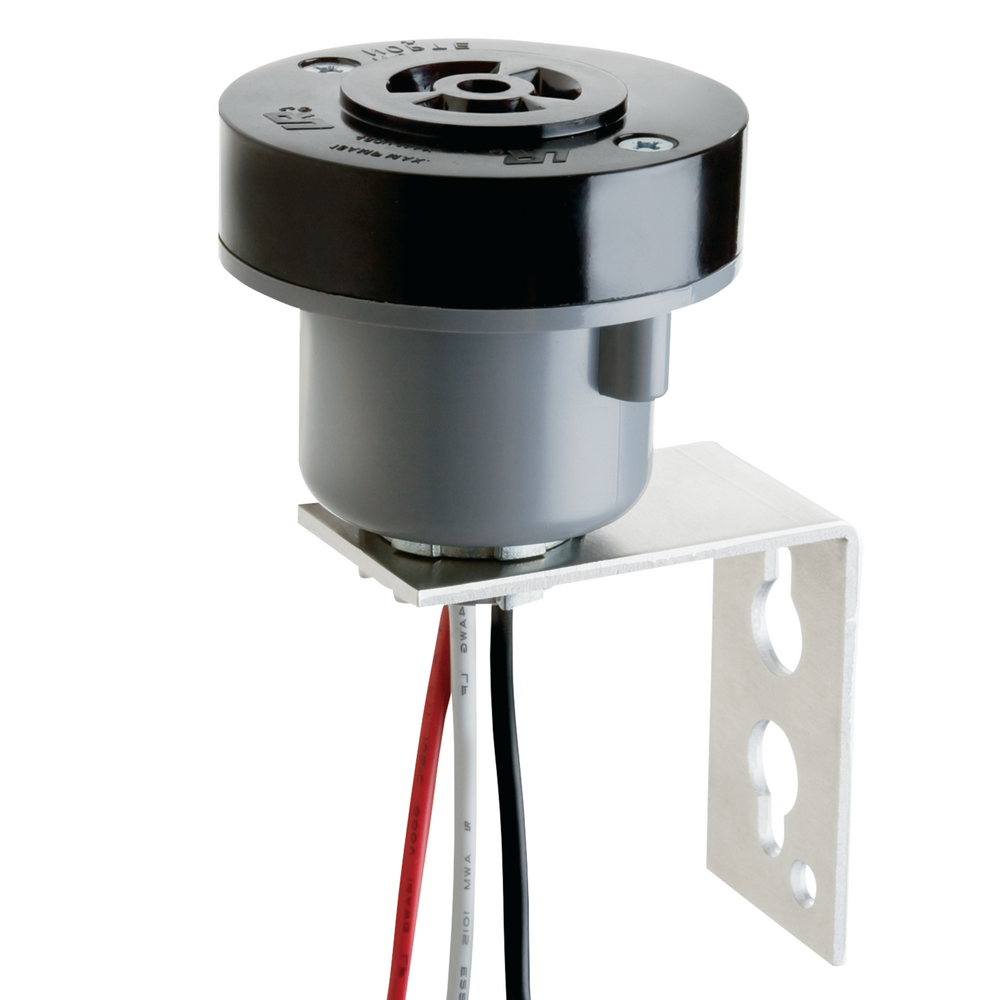

Intermatic K122, Locking Type Receptacle, 3-Pin, C136.10 Compliant, with Pole Mounting Bracket
Regular price
$49.07
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included).
- NEMA receptacle with 3-prong sockets.
-
Compliant to ANSI C136.10 specifications.
| Model Number | K122 |
| Description | Locking Type Receptacle, 3-Pin, C136.10 Compliant, with Pole Mounting Bracket |
| Color | Black |
| Base Material | Phenolic |
| Bracket Material | Aluminum |
| Back Cover Material | Phenolic |
| Power Contacts Material | Brass/Phosphor Bronze |
| Gasket | (Integrated) Thermal Elastomer |
| Power Contacts Rating | 480 V max, 15 A max |
| Temperature (operation) | -40 °F to 176 °F / (-40 °C to 80 °C) |
| UL Certification | cRUus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
