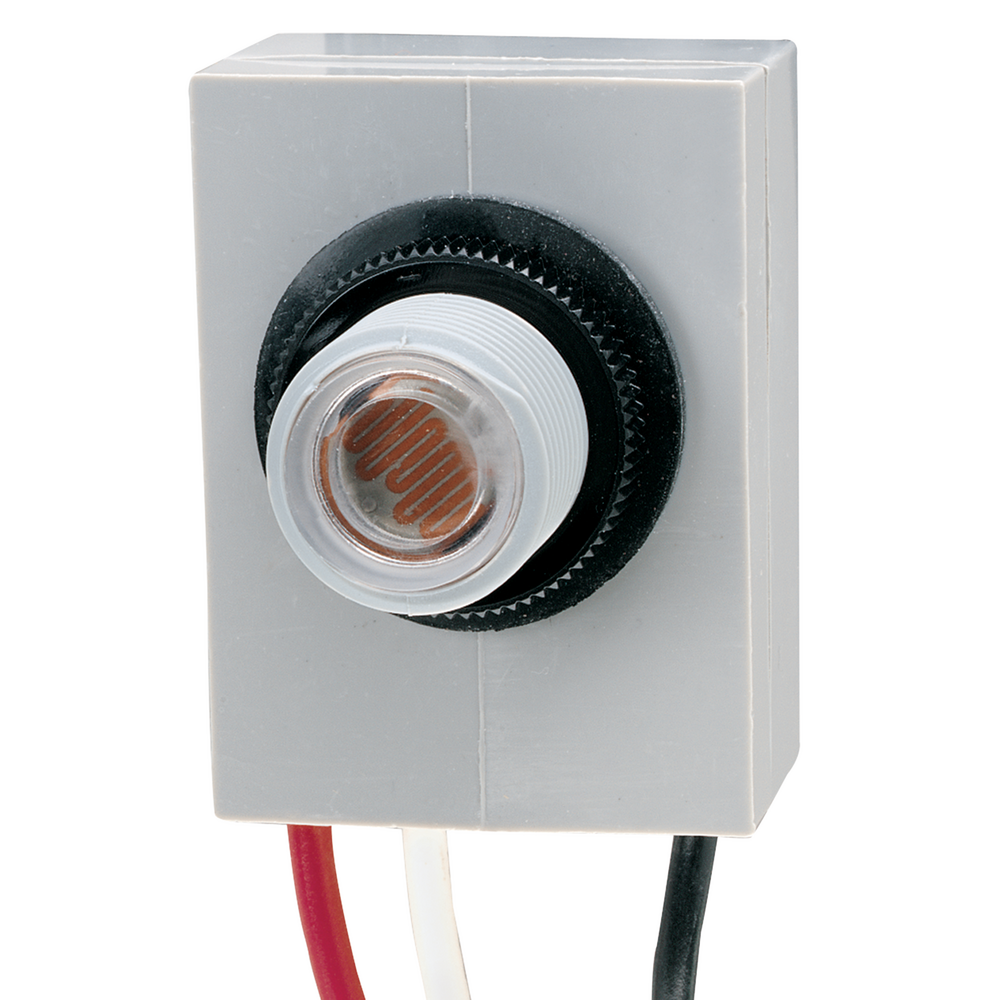

Intermatic K4021C, Button Thermal Photocontrol, Fixed Position Mounting, Mechanism Only, Dusk-To-Dawn, 120V
Regular price
$25.36
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.
- Mechanical bimetal switch with Cadmium Sulfide photocell.
- Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures.
- Delay feature prevents unwanted OFF switching.
-
3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket.
| Model Number | K4021C |
| Description | Button Thermal Photocontrol, 120 V |
| Color | Gray |
| Sensor Time Delay | 30 sec to 90 sec |
| Photocell Type | Cadmium Sulfide |
| Photo Control Switch Type | Mechanical Bimetal |
| Fail Mode | ON |
| Photocontrol Type | Thermal |
| Application Compatibilities | HID; Fluorescent; Incandescent |
| Photocontrol Style | Button |
| Photocontrol Sensor Location | Front |
| Housing Material | Polycarbonate |
| Magnetic Ballast (NO) Range(s) | 8.3 A, 1000 VA |
| Tungsten Incandescent (NO) Range(s) | 15 A, 1800 W |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Switch Type | SPST |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 2-Year limited |
