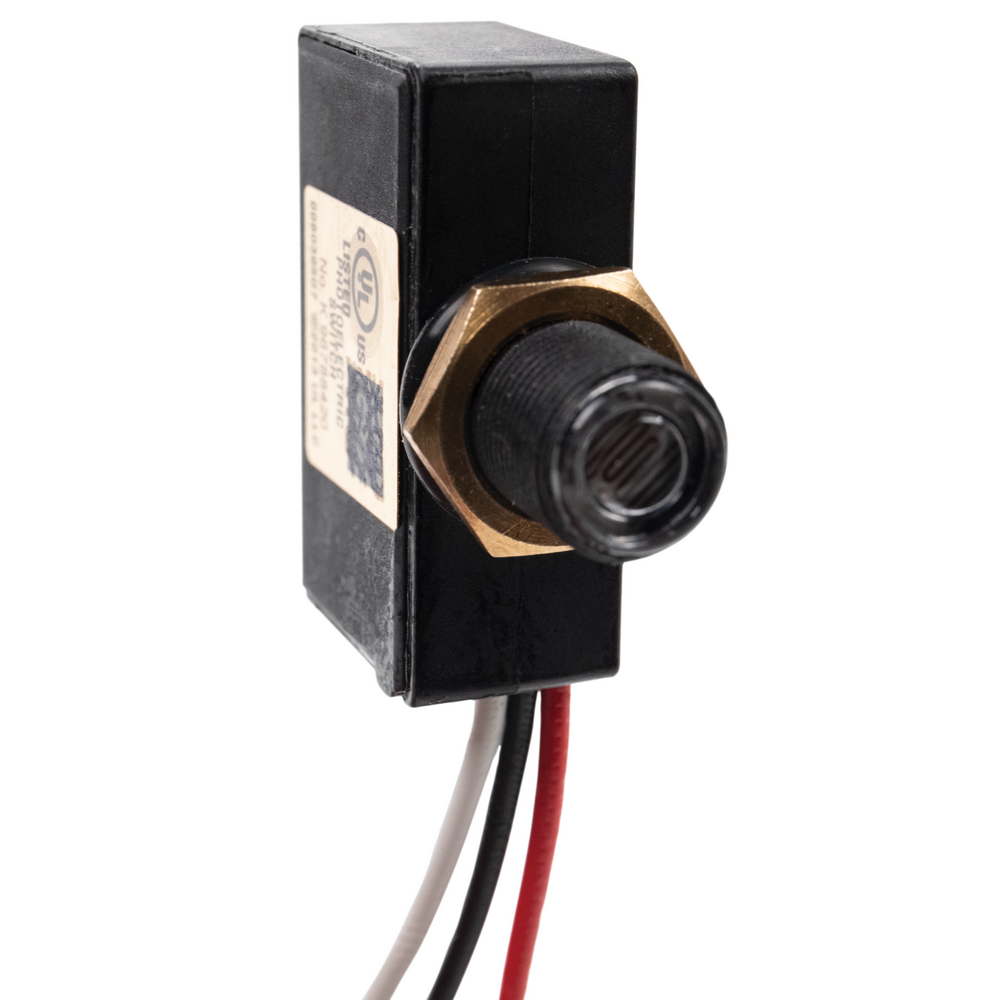

Intermatic K4021MB, Mini-Button Thermal Photocontrol, 120V
Regular price
$22.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The mini-button photocontrol is a compact thermal-type photocontrol that fits inside small poles and enclosures. The photocontrol provides dusk-to-dawn lighting control. It is compatible with CFL, incandescent and LED bulbs. Its compact size makes it ideal for lamp posts and small light fixtures used in residential applications.
- Mechanical bimetal switch with cadmium sulfide photocell.
- Super compact size fits into small diameter lamp post and small light fixtures.
- Delay feature prevents unwanted OFF switching.
- Fits through small 7/16” (11 mm) diameter hole, locking nut and washer gasket.
-
Wallplate not included.
| Model Number | K4021MB |
| Description | Mini-Button Thermal Photocontrol, 120V |
| Color | Black |
| Sensor Time Delay | 30 sec to 90 sec |
| Photocell Type | Cadmium Sulfide |
| Photo Control Switch Type | Mechanical Bimetal |
| Fail Mode | ON |
| Photocontrol Type | Thermal |
| Application Compatibilities | Incandescent; LED; CFL |
| Photocontrol Style | Button |
| Photocontrol Sensor Location | Front |
| Tungsten Range(s) | 500 W |
| Electronic Ballast Load Ratings Ranges | 1 A, 120 VAC, 60 Hz |
| Inductive | 300 VA |
| Inductive Load Ratings Ranges | 300 VA |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Temperature (operation) | -20°C..55°C |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 2-Year limited |
