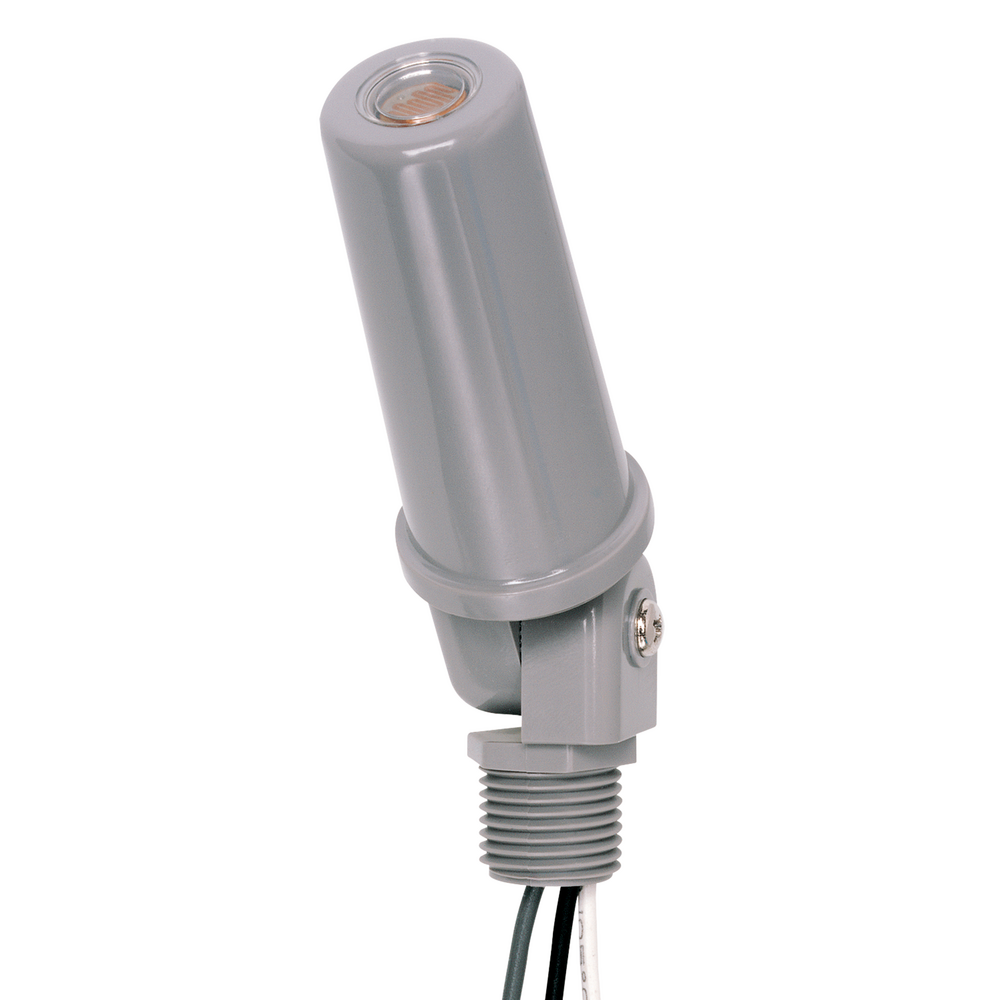

Intermatic K4253, Stem and Swivel Mount Thermal Photocontrol, 208-277V
Regular price
$40.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.
- Mechanical bimetal switch with Cadmium Sulfide photocell.
- Delay feature prevents unwanted OFF switching.
- High strength, UV resistant plastic housing.
- Swivel with 1⁄2"-14 NPSM threaded stem.
- Washer gasket and locking nut included.
-
#18 AWG, 6" wire leads.
| Model Number | K4253 |
| Description | Stem and Swivel Mount Thermal Photocontrol, 208-277 V |
| Color | Gray |
| Sensor Time Delay | 30 sec to 90 sec |
| Photocell Type | Cadmium Sulfide |
| Photo Control Switch Type | Mechanical Bimetal |
| Fail Mode | ON |
| Photocontrol Type | Thermal |
| Application Compatibilities | HID; Fluorescent; Incandescent |
| Photocontrol Style | Stem and Swivel Mount |
| Photocontrol Sensor Location | Top |
| Housing Material | Polycarbonate |
| Magnetic Ballast (NO) Range(s) | 8.3 A, 1700-2300 VA |
| Tungsten Incandescent (NO) Range(s) | 15 A, 3100-4150 W |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 208-277 VAC, 50/60 Hz |
| Switch Type | SPST |
| Temperature (operation) | -40 °F to 140 °F / (-40 °C to 60 °C) |
| Usage Environments | Outdoor |
| CSA Certification | CSA |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
